The recommended soldering temperature is 260°C (500°F) with a maximum dwell time of 10 seconds. It's essential to follow the soldering profile recommended by Cornell Dubilier Electronics Inc to ensure the capacitor's reliability and performance.
Yes, the DSF106Q3R0 is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6, which involves sinusoidal vibration at 10-2000 Hz with an amplitude of 1.5 mm. However, it's essential to ensure proper mounting and securing of the capacitor to prevent mechanical stress.
The DSF106Q3R0 is rated for operation up to 125°C, but its performance may degrade at higher temperatures. The capacitor's capacitance, ESR, and impedance may change with temperature, so it's essential to consult the datasheet and application notes for specific guidance on high-temperature operation.
Yes, the DSF106Q3R0 is designed and manufactured to meet the requirements of high-reliability applications. It's built with high-quality materials and undergoes rigorous testing and screening to ensure its performance and reliability. However, it's essential to consult with Cornell Dubilier Electronics Inc and follow their guidelines for specific high-reliability applications.
The DSF106Q3R0 is designed to operate in a humid environment, but it's essential to follow the recommended storage and handling procedures to prevent moisture absorption. The capacitor's packaging is designed to prevent moisture ingress, but it's still important to follow proper handling and storage procedures to ensure its reliability and performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DSF106Q3R0 Overview

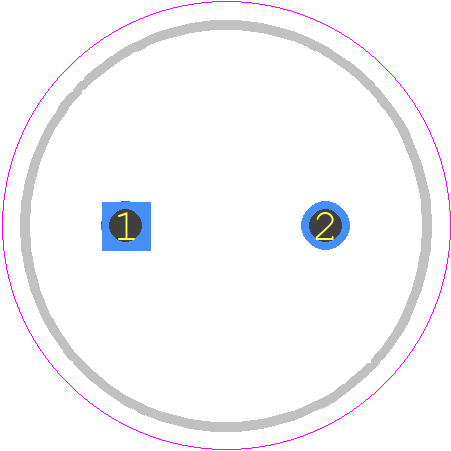

Use the download button to access the DSF106Q3R0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DSF10,
or try a keyword search, such as Electric Double Layer Capacitors
