The recommended operating temperature range for the DSM7TA56106T is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range for extended periods.
To ensure proper thermal management, it's crucial to provide adequate heat sinking and airflow around the device. The datasheet recommends a thermal resistance of 10°C/W or less for the heat sink. Additionally, ensure that the device is mounted on a PCB with a sufficient thermal conductivity and that there is adequate clearance around the device for airflow.
The maximum power dissipation for the DSM7TA56106T is 1.5W, as specified in the datasheet. Exceeding this limit can cause the device to overheat, leading to reduced performance, reliability issues, or even permanent damage.
While the DSM7TA56106T is designed to be robust, it's essential to ensure that the device is properly mounted and secured to withstand vibrations. The datasheet does not provide specific vibration tolerance information, so it's recommended to consult with the manufacturer or perform additional testing to ensure the device's reliability in high-vibration environments.
The recommended storage temperature range for the DSM7TA56106T is -40°C to 100°C, as specified in the datasheet. Storing the device outside this range can cause damage or affect its performance and reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DSM7TA56106T Overview

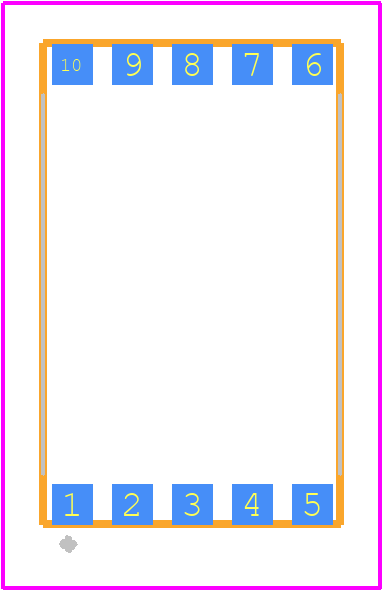

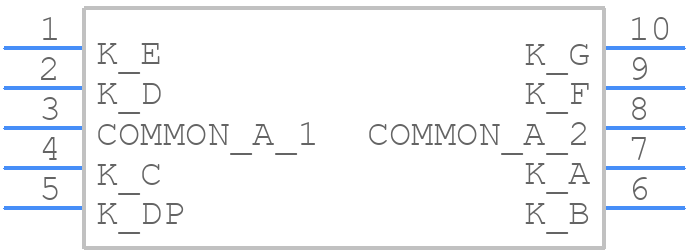

Use the download button to access the DSM7TA56106T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DSM7T,
or try a keyword search, such as LED Displays
Suggested Parts
If you searched for DSM7TA56106T, you might also be interested in these parts:
