DSP1a-L2-DC12V footprint, schematic symbol and 3D model by Panasonic

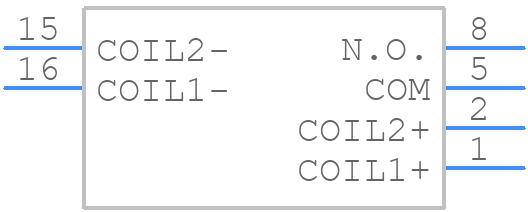

Symbol

click to zoom

PCB Footprints

DSP1a-L2-DC12V - Panasonic PCB footprint - Other - Other - DSP1a-L2-DC12V-3

click to zoom

3D Models

DSP1a-L2-DC12V - Panasonic - 3D model - Other - DSP1a-L2-DC12V-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DSP1a-L2-DC12V
Part Number DSP1a-L2-DC12V
Manufacturer Panasonic
Pin Count 6
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - DSP1a-L2-DC12V-3
Released Date Dec 18, 2023
Last Modified Date Mar 30, 2026 1:50 PM UTC
Pinout / Pin List Click Here (Member Only)

DSP1a-L2-DC12V Details

Manufacturer Part Number:
DSP1A-L2-DC12V
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.49.00.50
Factory Lead Time:
16 Weeks
Manufacturer:
Panasonic Electronic Components
YTEOL:
6.66
Additional Feature:
RELEASE TIME WITHOUT DIODE
Body Breadth:
11 mm
Body Height:
10.5 mm
Body Length or Diameter:
20.2 mm
Coil Current(DC)-Max:
0.025 A
Coil Operate Voltage(DC):
9.6 V
Coil Power:
300 mW
Coil Release Voltage(DC):
9.6 V
Coil Resistance:
480 Ω
Coil Voltage(DC)-Max:
12 V
Coil/Input Supply Type:
DC
Contact (AC) Max Rating R Load:
8A@380VAC
Contact Current(AC)-Max:
8 A
Contact Current(DC)-Max:
5 A
Contact (DC) Max Rating R Load:
5A@125VDC
Contact Voltage(AC)-Max:
380 V
Contact Voltage(DC)-Max:
125 V
Contact/Output Supply Type:
AC/DC
Electrical Life:
100000 Cycle(s)
Mounting Feature:
THROUGH HOLE-STRAIGHT
Operate Time:
10 ms
Operating Temperature-Max:
60 °C
Operating Temperature-Min:
-40 °C
Packing Method:
BOX
Physical Dimension:
20.2mm x 11mm x 10.5mm
Reference Standard:
CSA; TUV; UL
Relay Action:
LATCHED
Relay Function:
SPST
Relay Type:
POWER/SIGNAL RELAY
Release Time:
5 ms
Sealing:
WATER PROOF
Surface Mount:
NO
Termination Type:
SOLDER

DSP1a-L2-DC12V Frequently Asked Questions (FAQs)

Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
Proper thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and avoid blocking the vent holes on the relay module. Also, consider the ambient temperature and heat generated by surrounding components.
Panasonic typically provides a derating curve in their datasheet or application notes. This curve helps determine the relay's switching capacity based on the load's inrush current, voltage, and operating frequency.
Use proper shielding, grounding, and filtering techniques. Ensure the relay module is placed away from sensitive analog circuits, and use a common-mode choke or ferrite bead to filter out high-frequency noise.
Use a diode or a resistor-capacitor (RC) snubber circuit to suppress the back-EMF generated by the relay coil. This helps reduce EMI and ensures reliable operation.

Trust Checks

Community Provided

System Verified

Community Approved

DSP1a-L2-DC12V Overview

Use the download button to access the DSP1a-L2-DC12V schematic symbol, PCB footprint, and 3D model.
