DSP56ADC16S - Motorola

Description: The DSP56ADC16 is available in a 20-pin CERDIP

Download DSP56ADC16S Model

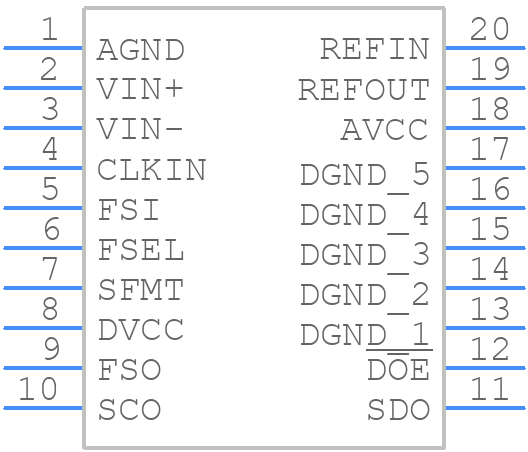

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

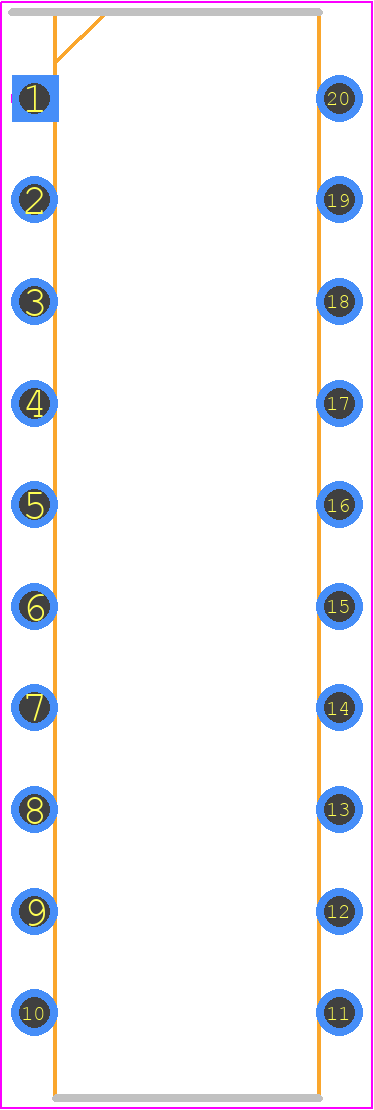

DSP56ADC16S - Motorola PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - CASE 738–03
click to zoom
3D Models
DSP56ADC16S - Motorola  - 3D model - Dual-In-Line Packages - CASE 738–03
click to zoom

DSP56ADC16S Details

  • Manufacturer Part Number:

    DSP56ADC16S

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CERDIP-20

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Motorola Semiconductor Products

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    2 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-CDIP-T20

  • JESD-609 Code:

    e0

  • Length:

    24.515 mm

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.4 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm
