DSPIC30F6012-20I/PF - Microchip

DSPIC30F6012-20I/PF Details

• Manufacturer Part Number:

  DSPIC30F6012-20I/PF

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFP

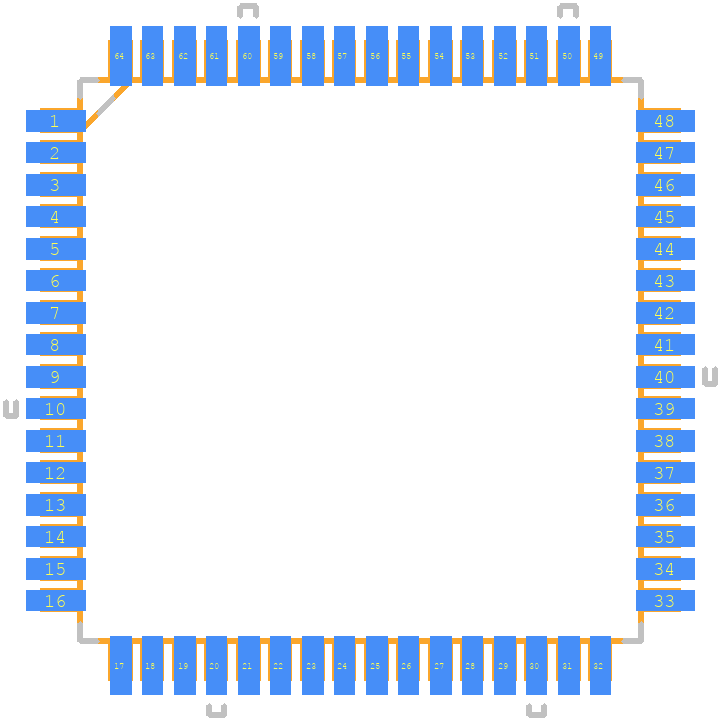

• Package Description:

  14 X 14 MM, 1MM HEIGHT, PLASTIC, MS-026, TQFP-64

• Pin Count:

  64

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.01

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  0

• Additional Feature:

  ALSO OPERATES AT 2.5V MINIMUM SUPPLY AT 7.5 MHZ

• Barrel Shifter:

  YES

• Bit Size:

  16

• Boundary Scan:

  NO

• Clock Frequency-Max:

  40 MHz

• Format:

  FIXED POINT

• Internal Bus Architecture:

  MULTIPLE

• JESD-30 Code:

  S-PQFP-G64

• JESD-609 Code:

  e3

• Length:

  14 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  1

• Number of Terminals:

  64

• On Chip Program ROM Width:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TQFP

• Package Equivalence Code:

  TQFP64,.63SQ,32

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• ROM Programmability:

  FLASH

• Screening Level:

  TS 16949

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  DIGITAL SIGNAL PROCESSOR, CONTROLLER
