DSPIC33CK32MC105-E/M4 - Microchip

Description: 16-Bit Digital Signal Controllers with High-Speed ADC, Op Amps, Comparators and High-Resolution PWM

Download DSPIC33CK32MC105-E/M4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DSPIC33CK32MC105-E/M4 - Microchip - PCB symbol
click to zoom

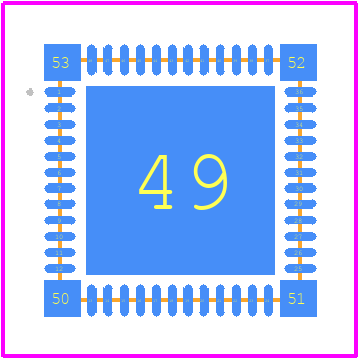

PCB Footprints
DSPIC33CK32MC105-E/M4 - Microchip PCB footprint - Other - Other - 48-Lead Ultra Thin Plastic Quad Flat, No Lead Package (M4) - 6x6 mm Body [UQFN] With Corner Anchors and
click to zoom
3D Models
DSPIC33CK32MC105-E/M4 - Microchip - 3D model - Other - 48-Lead Ultra Thin Plastic Quad Flat, No Lead Package (M4) - 6x6 mm Body [UQFN] With Corner Anchors and
click to zoom

DSPIC33CK32MC105-E/M4 Details

  • Manufacturer Part Number:

    DSPIC33CK32MC105-E/M4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    48

  • Manufacturer Package Code:

    UQFN-48

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    6 Weeks

  • Date Of Intro:

    2020-08-12

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Barrel Shifter:

    YES

  • Bit Size:

    16

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    64 MHz

  • Format:

    FIXED POINT

  • Integrated Cache:

    YES

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of DMA Channels:

    4

  • Number of External Interrupts:

    4

  • Number of Serial I/Os:

    3

  • Number of Terminals:

    48

  • Number of Timers:

    3

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TUBE

  • RAM (words):

    8192

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.6 mm

  • Supply Current-Max:

    29.6 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, CONTROLLER

DSPIC33CK32MC105-E/M4 Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be achieved with an external crystal oscillator is 32 MHz, but it depends on the specific crystal oscillator used and the board layout. Refer to the oscillator manufacturer's datasheet and the Microchip's oscillator design guide for more information.
  • To optimize power consumption, use the Power-Saving Modes (Sleep, Idle, and Doze) provided by the microcontroller. Also, disable peripherals when not in use, use a lower clock frequency, and optimize the code to reduce execution time. Refer to the datasheet and the Microchip's low-power design guide for more information.
  • The maximum amount of current that can be sourced or sunk by the GPIO pins is 25 mA per pin, but it depends on the specific pin and the operating conditions. Refer to the datasheet for more information on the current limits for each pin.
  • The DSPIC33CK32MC105-E/M4 has a built-in watchdog timer (WDT) that can be enabled and configured using the WDTCON register. The WDT can be used to reset the microcontroller in case of a software fault or hang. Refer to the datasheet and the Microchip's watchdog timer application note for more information.
  • The DSPIC33CK32MC105-E/M4 has 32 KB of flash memory, but some of it is used for the bootloader and other system functions. The maximum amount of flash memory available for program storage is approximately 28 KB. Refer to the datasheet for more information on the memory organization.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DSPIC33CK32MC105-E/M4 Overview

Use the download button to access the DSPIC33CK32MC105-E/M4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DSPIC, or try a keyword search, such as Digital Signal Processors

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
