dsPIC33EV256GM004-I/ML - Microchip

Description: MICROCHIP - DSPIC33EV256GM004-I/ML - Digital Signal Controller, 70 MHz, 256 KB, 35 I/O's, I2C, SPI, UART, 1.8 V

Download dsPIC33EV256GM004-I/ML Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

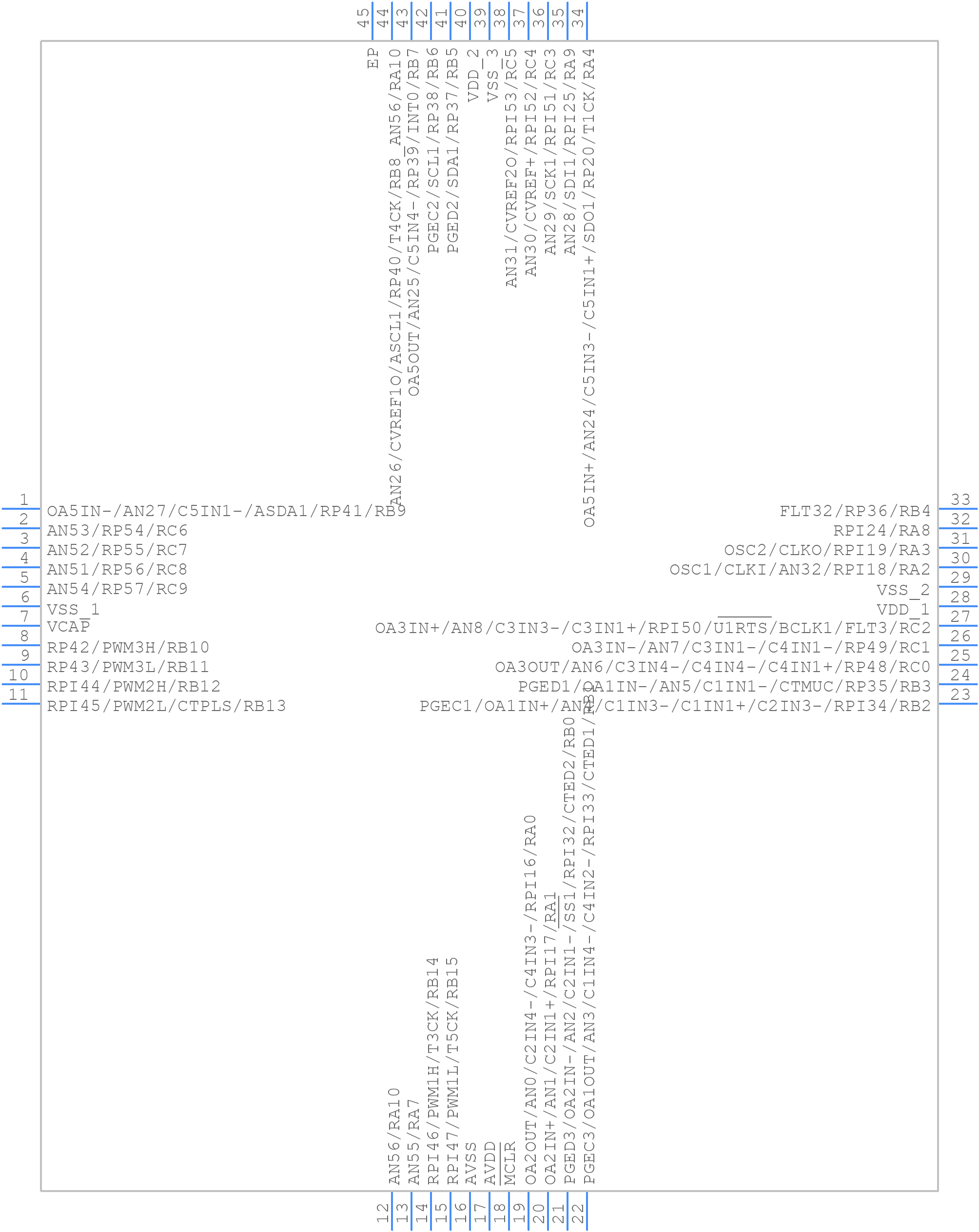

Symbol
dsPIC33EV256GM004-I/ML - Microchip - PCB symbol
click to zoom
PCB Footprints
dsPIC33EV256GM004-I/ML - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 44-Lead Plastic Quad Flat, No Lead Package (ML) - 8x8 mm Body
click to zoom
3D Models
dsPIC33EV256GM004-I/ML - Microchip - 3D model - Quad Flat No-Lead - 44-Lead Plastic Quad Flat, No Lead Package (ML) - 8x8 mm Body
click to zoom

dsPIC33EV256GM004-I/ML Details

  • Manufacturer Part Number:

    DSPIC33EV256GM004-I/ML

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    QFN-44

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Has ADC:

    YES

  • Barrel Shifter:

    YES

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PQCC-N44

  • JESD-609 Code:

    e3

  • Length:

    8 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    4

  • Number of External Interrupts:

    3

  • Number of I/O Lines:

    35

  • Number of Terminals:

    44

  • Number of Timers:

    7

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC44,.32SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    16384

  • RAM (words):

    16384

  • ROM (words):

    262144

  • ROM Programmability:

    FLASH

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Speed:

    40 MHz

  • Supply Current-Max:

    350 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    8 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, CONTROLLER
