DSQ0150V2NBSC - Murata Electronics

Description: DC/DC Converters - Through Hole DC DC CONVERTER 12V 60W

Download DSQ0150V2NBSC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

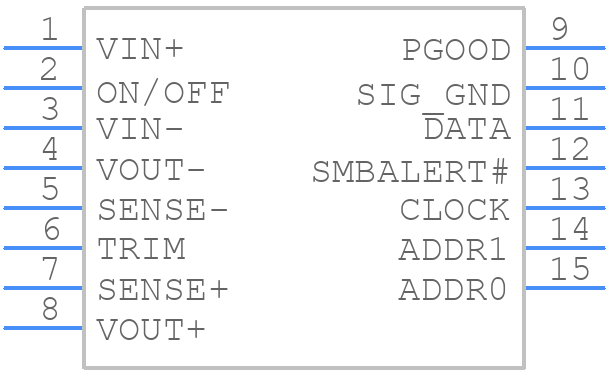

Symbol
DSQ0150V2NBSC - Murata Electronics - PCB symbol
click to zoom

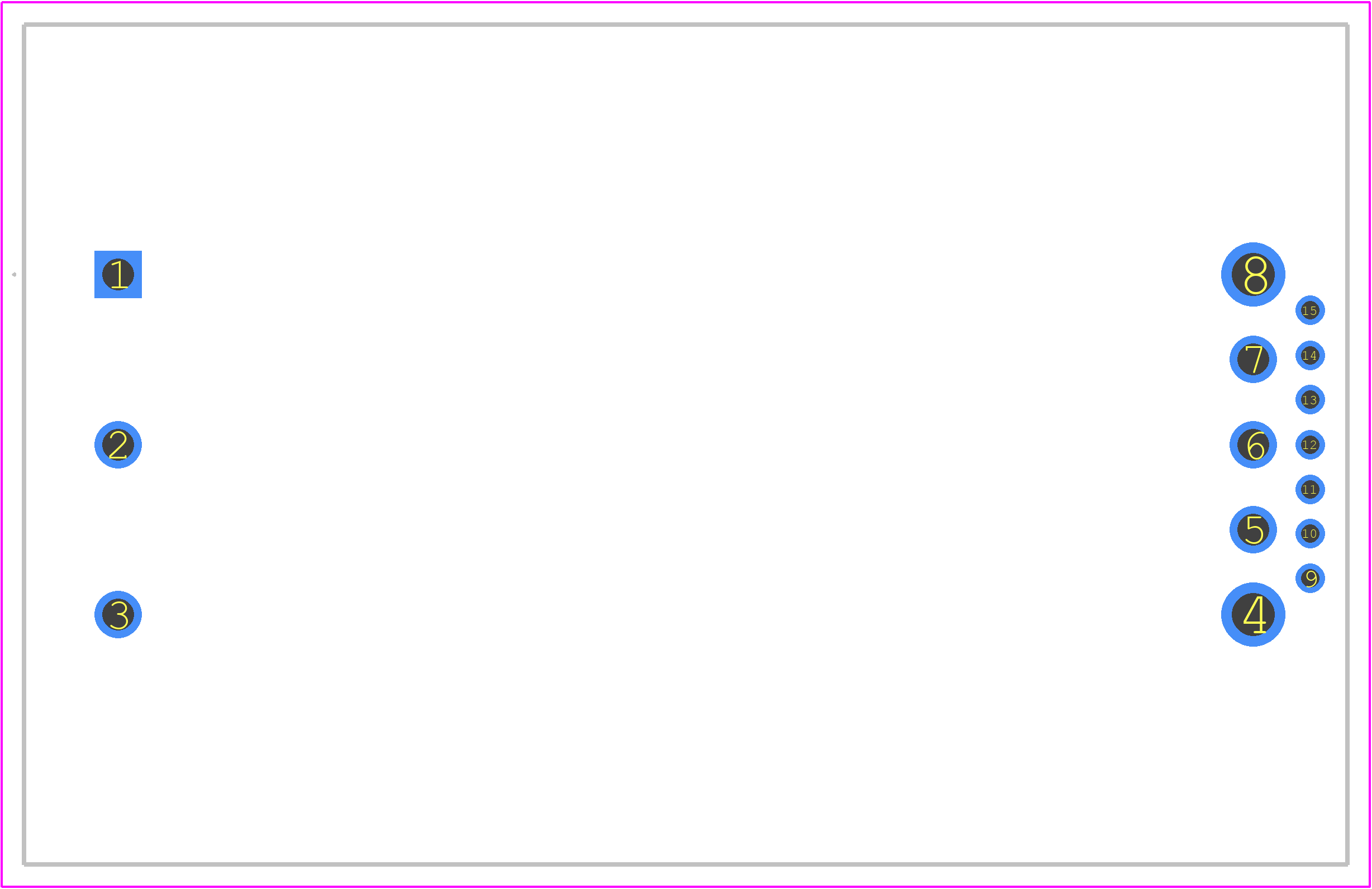

PCB Footprints
DSQ0150V2NBSC - Murata Electronics PCB footprint - Other - Other - DSQ0150V2NBSC-1
click to zoom
3D Models
DSQ0150V2NBSC - Murata Electronics - 3D model - Other - DSQ0150V2NBSC-1
click to zoom

DSQ0150V2NBSC Details

  • Manufacturer Part Number:

    DSQ0150V2NBSC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    1/4 BRICK PACKAGE-15/12

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    36 Weeks

  • Date Of Intro:

    2020-06-04

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CAN; CSA; IEC; UL

  • Efficiency (Main Output):

    96%

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    36 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-XDMA-X12

  • Length:

    58.42 mm

  • Line Regulation-Max:

    0.625%

  • Load Regulation-Max:

    0.375%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    50 A

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,12LEAD(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; SHORT CIRCUIT; THERMAL

  • Ripple Voltage (Main Out):

    0.053025 Vrms

  • Screening Level:

    IEC/UL 62368-1

  • Seated Height-Max:

    13.208 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    600 W

  • Trim/Adjustable Output:

    NO

  • Warm-up Time:

    0.11 s

  • Width:

    36.83 mm

DSQ0150V2NBSC Frequently Asked Questions (FAQs)

  • Murata provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic inductance, and reduce electromagnetic interference (EMI).
  • The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. Murata recommends using capacitors with a voltage rating of at least 1.5 times the input voltage and a capacitance value that meets the required ripple current. Additionally, consider the capacitor's ESR, as it affects the converter's stability and efficiency.
  • The maximum ambient temperature for the DSQ0150V2NBSC is 85°C. As the ambient temperature increases, the converter's efficiency and reliability may be affected. It's essential to ensure proper airflow and heat dissipation to maintain optimal performance and prevent overheating.
  • The DSQ0150V2NBSC has built-in overcurrent protection, but it's recommended to add external protection circuits to ensure reliable operation. Implementing a fuse or a current-sensing resistor can provide additional protection against overcurrent and short-circuit conditions.
  • The recommended input voltage range for the DSQ0150V2NBSC is 2.7V to 5.5V. Operating the converter outside this range may affect its performance, efficiency, and reliability. It's essential to ensure the input voltage is within the recommended range to maintain optimal operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DSQ0150V2NBSC Overview

Use the download button to access the DSQ0150V2NBSC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DSQ01, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
