DSS5160FDB-7 - Diodes Incorporated

Description: Bipolar (BJT) Transistor Array 2 PNP (Dual) 60V 1A 65MHz 405mW Surface Mount U-DFN2020-6 (Type B)

Download DSS5160FDB-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

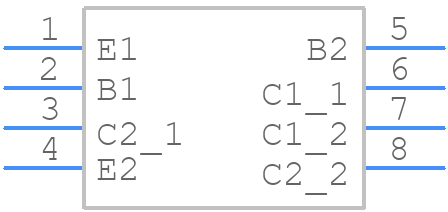

Symbol
DSS5160FDB-7 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
DSS5160FDB-7 - Diodes Incorporated PCB footprint - Other - Other - u-dfn2020-6(type b)-2025-61
click to zoom
3D Models
DSS5160FDB-7 - Diodes Incorporated - 3D model - Other - u-dfn2020-6(type b)-2025-61
click to zoom

DSS5160FDB-7 Details

  • Manufacturer Part Number:

    DSS5160FDB-7

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    1 A

  • Collector-Emitter Voltage-Max:

    60 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    70

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    PNP

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    65 MHz

DSS5160FDB-7 Frequently Asked Questions (FAQs)

  • Diodes Incorporated recommends a PCB layout with a solid ground plane and a thermal relief pattern under the device to ensure optimal thermal performance. A minimum of 2oz copper thickness is recommended for the PCB.
  • To ensure proper biasing, the device should be operated within the recommended voltage range (VCC = 2.5V to 5.5V) and the input voltage (VIN) should be within the specified range (VIN = 0.8V to VCC + 0.3V). Additionally, the input current (IIN) should be limited to the recommended maximum value (IIN = 10mA).
  • The recommended input capacitance value for the DSS5160FDB-7 is 10nF to 100nF. This value helps to filter out high-frequency noise and ensures stable operation.
  • To ensure ESD protection, it is recommended to use a TVS (Transient Voltage Suppressor) diode or a dedicated ESD protection device at the input pins of the DSS5160FDB-7. Additionally, handling the device by its package and not its pins can help prevent ESD damage.
  • The recommended operating temperature range for the DSS5160FDB-7 is -40°C to 125°C. Operating the device outside this range may affect its performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DSS5160FDB-7 Overview

Use the download button to access the DSS5160FDB-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DSS51, or try a keyword search, such as Small Signal Bipolar Transistors
