A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer. This helps to dissipate heat efficiently. Additionally, it's recommended to have a minimum of 2oz copper thickness and a thermal via array under the IC to further improve thermal performance.
To ensure proper biasing, make sure to follow the recommended voltage and current ratings specified in the datasheet. Additionally, it's essential to decouple the power supply lines with capacitors (e.g., 10uF and 100nF) to reduce noise and ensure stable operation.
To prevent ESD damage, handle the device in an ESD-controlled environment, wear an ESD strap, and use ESD-safe tools and materials. Avoid touching the device's pins or exposed die, and ensure the device is properly packaged and stored in an ESD-safe container when not in use.
To troubleshoot issues, start by verifying the power supply voltage and current ratings. Check for any signs of overheating, and ensure the device is properly mounted and connected. Use an oscilloscope to monitor the device's output and input signals, and consult the datasheet for specific troubleshooting guidelines.
For high-reliability or high-temperature applications, ensure the device is operated within the recommended temperature range (-40°C to 125°C). Follow the recommended derating guidelines for voltage and current, and consider using a thermal interface material (TIM) to improve heat transfer. Additionally, consult with Diodes Incorporated's application engineers for customized support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DST3906DJ-7 Overview

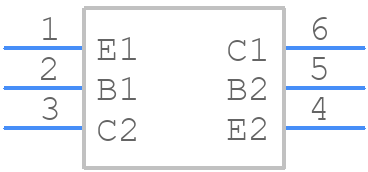

Use the download button to access the DST3906DJ-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DST39,
or try a keyword search, such as Small Signal Bipolar Transistors
