- Part Number DT3001B
- Manufacturer SEOUL SEMICONDUCTOR
- Pin Count 13
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QFN 12Pin_1
- Released Date Jan 23, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DT3001B Details
-
Manufacturer Part Number:
DT3001B
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Contact Manufacturer
-
Package Description:
6 X 6 MM, QFN-12
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Seoul Semiconductor
-
YTEOL:
2
-
Interface IC Type:
INTERFACE CIRCUIT
-
JESD-30 Code:
S-XQCC-N12
-
Length:
6 mm
DT3001B Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the DT3001B is -40°C to 85°C.
-
To ensure proper soldering, use a soldering iron with a temperature of 260°C to 280°C, and apply a small amount of solder paste to the pads. Avoid applying excessive force or heat, which can damage the device.
-
The maximum forward current rating for the DT3001B is 30mA. Exceeding this rating can lead to reduced lifespan or device failure.
-
Store the DT3001B in a dry, cool place away from direct sunlight and moisture. Avoid exposing the device to mechanical stress, vibration, or extreme temperatures during transportation.
-
The recommended reflow soldering profile for the DT3001B is a peak temperature of 260°C, with a dwell time of 20-30 seconds above 220°C.
Trust Checks
Expert Contribution
System Verified
Community Approved
DT3001B Overview

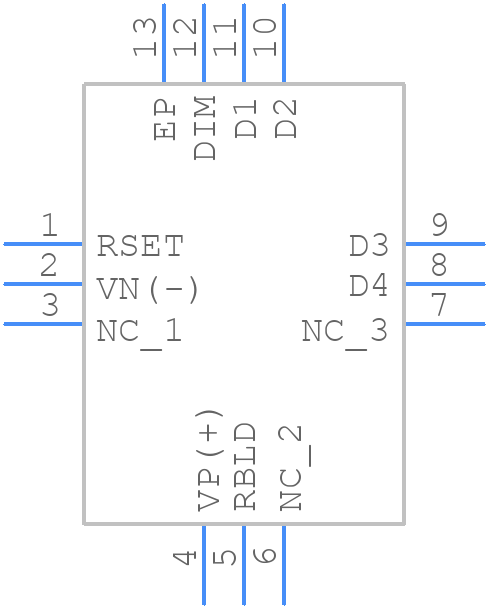

Use the download button to access the DT3001B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DT300,
or try a keyword search, such as Other Interface ICs
