DTA114YET1G - onsemi

Description: Simplifies Circuit Design; Reduces Board Space; Reduces Component Count; S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AECQ101 Qualified and PPAP Capable; These Devices are PbFree, Halogen Free/BFR Free and are RoHS Compliant

Download DTA114YET1G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

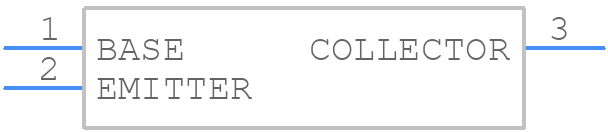

Symbol
DTA114YET1G - onsemi - PCB symbol
click to zoom
PCB Footprints
DTA114YET1G - onsemi PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - SC-75/SOT-416 CASE 463
click to zoom
3D Models
DTA114YET1G - onsemi - 3D model - SOT23 (3-Pin) - SC-75/SOT-416 CASE 463
click to zoom

DTA114YET1G Details

  • Manufacturer Part Number:

    DTA114YET1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SC-75 (SOT-416) 3 LEAD

  • Pin Count:

    3

  • Manufacturer Package Code:

    463-01

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    BUILT-IN BIAS RESISTOR RATIO IS 4.7

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SINGLE WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    80

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    PNP

  • Power Dissipation-Max (Abs):

    0.3 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DTA114YET1G Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the DTA114YET1G is a standard SOT23-5 package with a 1.5mm x 1.5mm body size and a 0.5mm pitch. The datasheet provides a recommended land pattern and solder mask layout.
  • To ensure proper biasing, connect the input pin (VIN) to a stable voltage source, and decouple the input with a 1uF capacitor to ground. Also, ensure the output pin (VOUT) is properly decoupled with a 10uF capacitor to ground.
  • The maximum output current capability of the DTA114YET1G is 150mA. However, it's recommended to limit the output current to 100mA for optimal performance and to prevent overheating.
  • To protect the DTA114YET1G from overvoltage and undervoltage conditions, use a voltage supervisor or a reset IC to monitor the input voltage and reset the device if it falls outside the recommended operating range (2.5V to 5.5V).
  • The thermal resistance of the DTA114YET1G package is 240°C/W (junction-to-ambient) and 120°C/W (junction-to-case). Proper thermal design and heat sinking are recommended to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DTA114YET1G Overview

Use the download button to access the DTA114YET1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DTA11, or try a keyword search, such as Small Signal Bipolar Transistors
