DTA123JKAT146 - ROHM Semiconductor

DTA123JKAT146 Details

• Manufacturer Part Number:

  DTA123JKAT146

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SC-59

• Package Description:

  SC-59, 3 PIN

• Pin Count:

  3

• ECCN Code:

  EAR99

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  ROHM Semiconductor

• YTEOL:

  7

• Additional Feature:

  BUILT-IN BIAS RESISTOR RATIO IS 21

• Collector Current-Max (IC):

  0.1 A

• Collector-Emitter Voltage-Max:

  50 V

• Configuration:

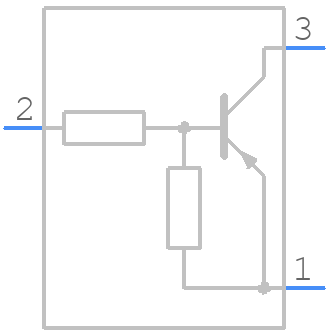

  SINGLE WITH BUILT-IN RESISTOR

• DC Current Gain-Min (hFE):

  80

• JESD-30 Code:

  R-PDSO-G3

• JESD-609 Code:

  e1

• Moisture Sensitivity Level:

  1

• Number of Elements:

  1

• Number of Terminals:

  3

• Operating Temperature-Max:

  150 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity/Channel Type:

  PNP

• Power Dissipation-Max (Abs):

  0.2 W

• Qualification Status:

  Not Qualified

• Surface Mount:

  YES

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON

• Transition Frequency-Nom (fT):

  250 MHz

• VCEsat-Max:

  0.3 V
