Description:Simplifies Circuit Design; Reduces Board Space; Reduces Component Count; S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable; These Devices are PbFree, Halogen Free/BFR Free and are RoHS Compliant
A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, vias should be placed under the package to connect the thermal pad to the copper area.
Ensure that the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C. Implement a thermal management system, such as a heat sink or fan, to keep the device temperature below the maximum TJ. Monitor the device's thermal performance and adjust the system design as needed.
The DTC114TM3T5G has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the PCB and components are properly grounded.
Yes, the DTC114TM3T5G is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q101 and is manufactured using automotive-grade processes. However, additional testing and validation may be required for specific applications.
Use a systematic approach to troubleshoot issues. Check the power supply, input signals, and output loads. Verify that the device is operated within the recommended operating conditions. Use oscilloscopes and logic analyzers to debug the circuit. Consult the datasheet and application notes for guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DTC114TM3T5G Overview

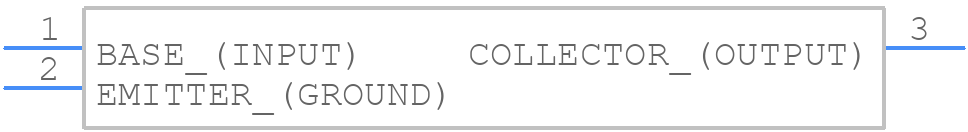

Use the download button to access the DTC114TM3T5G schematic symbol, PCB footprint, and 3D model.
