DTC123JUAT106 - ROHM Semiconductor

Description: ROHM, DTC123JUAT106 NPN Digital Transistor, 100 mA 50 V 2.2 kΩ, Ratio Of 21, 3-Pin SOT-323

Download DTC123JUAT106 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

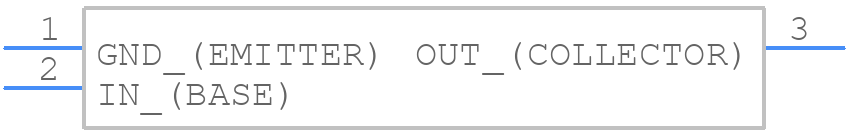

DTC123JUAT106 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
DTC123JUAT106 - ROHM Semiconductor PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - UMT3
click to zoom
3D Models
DTC123JUAT106 - ROHM Semiconductor - 3D model - SOT23 (3-Pin) - UMT3
click to zoom

DTC123JUAT106 Details

  • Manufacturer Part Number:

    DTC123JUAT106

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SC-70

  • Package Description:

    SC-70, 3 PIN

  • Pin Count:

    3

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Additional Feature:

    BUILT-IN BIAS RESISTOR RATIO IS 21

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SINGLE WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    80

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Power Dissipation-Max (Abs):

    0.2 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    250 MHz

  • VCEsat-Max:

    0.3 V

DTC123JUAT106 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the DTC123JUAT106 is to use a symmetrical layout with the device at the center, and to keep the input and output traces as short as possible to minimize noise and EMI.
  • To ensure the stability of the output voltage, it is recommended to use a capacitor with a value of 10uF or higher at the output pin, and to keep the input voltage within the recommended range.
  • The maximum input voltage that the DTC123JUAT106 can handle is 36V, but it is recommended to keep the input voltage within the recommended range of 12V to 24V for optimal performance.
  • The DTC123JUAT106 is rated for operation up to 125°C, but it is recommended to derate the output current and voltage at high temperatures to ensure reliable operation.
  • To protect the DTC123JUAT106 from overcurrent and overheating, it is recommended to use a current-limiting resistor or a fuse in series with the input, and to implement thermal monitoring and shutdown circuitry.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DTC123JUAT106 Overview

Use the download button to access the DTC123JUAT106 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DTC12, or try a keyword search, such as Small Signal Bipolar Transistors
