The recommended PCB footprint for the DTC143ZUAFRAT106 is a 0402 package with a land pattern of 0.5mm x 0.3mm. It's essential to follow the recommended footprint to ensure proper soldering and thermal performance.
To handle thermal management, ensure good airflow around the device, and consider using a heat sink or thermal pad if the device is expected to operate at high temperatures. The thermal resistance of the device is 250°C/W, so proper thermal design is crucial.
The maximum operating temperature range for the DTC143ZUAFRAT106 is -40°C to 125°C. Operating the device outside this range may affect its performance and reliability.
To ensure reliability in high-humidity environments, follow proper storage and handling procedures, and consider using moisture-resistant packaging or coatings. The device is rated for 85°C/85% RH conditions, but additional precautions may be necessary in extremely humid environments.
The DTC143ZUAFRAT106 has an ESD rating of 2kV human body model (HBM) and 150V machine model (MM). To prevent ESD damage, follow proper handling and storage procedures, and consider using ESD protection devices or circuits in the design.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DTC143ZUAFRAT106 Overview

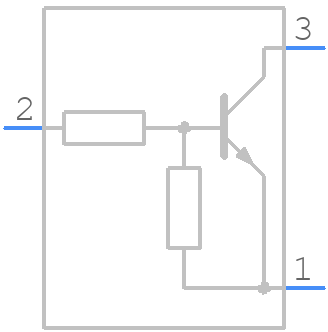

Use the download button to access the DTC143ZUAFRAT106 schematic symbol and PCB footprint.
