The recommended PCB footprint for the DTD113ZUT106 is a 0603 package with a land pattern of 0.8mm x 0.5mm. It's essential to follow the recommended footprint to ensure proper soldering and thermal performance.
To ensure the DTD113ZUT106 operates within its SOA, monitor the voltage, current, and power dissipation. Keep the voltage between 1.4V to 5.5V, current below 100mA, and power dissipation below 250mW. Also, ensure proper thermal management and PCB design.
Store the DTD113ZUT106 in a dry, dark place with a temperature range of -40°C to 125°C and humidity below 60%. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures.
Yes, the DTD113ZUT106 is suitable for high-reliability applications. ROHM Semiconductor follows a rigorous quality control process, and the device is built with high-quality materials. However, it's essential to follow proper design, manufacturing, and testing procedures to ensure the device meets the required reliability standards.
Handle the DTD113ZUT106 by the body, avoiding touching the pins or electrical connections. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. Follow standard SMT assembly and soldering procedures, and ensure the device is properly cleaned and dried after soldering.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DTD113ZUT106 Overview

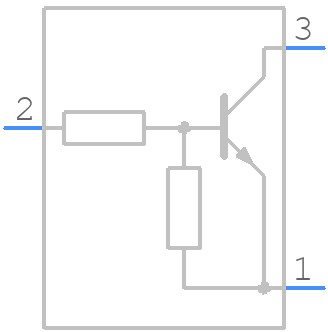

Use the download button to access the DTD113ZUT106 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DTD11,
or try a keyword search, such as Small Signal Bipolar Transistors
