DX07S024JA2R1200 - JAE

Description: Input/Output Connector, USB Type-C connector, With rear shield, 24 pos., 2-row SMT, On-board, Receptacle, 5A, 48V, -30°C ~ 80°C

Download DX07S024JA2R1200 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

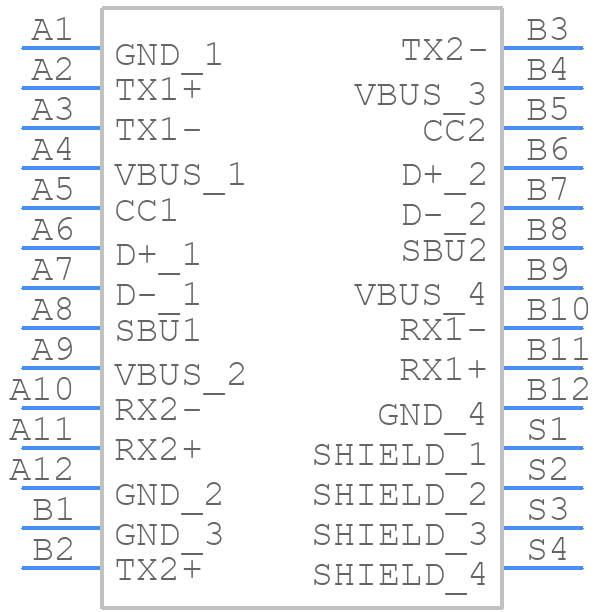

DX07S024JA2R1200 - JAE - PCB symbol
