DX10A-20S(50) footprint, schematic symbol and 3D model by Hirose

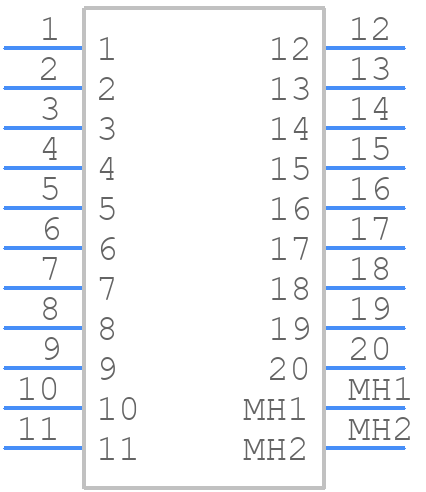

Symbol

click to zoom

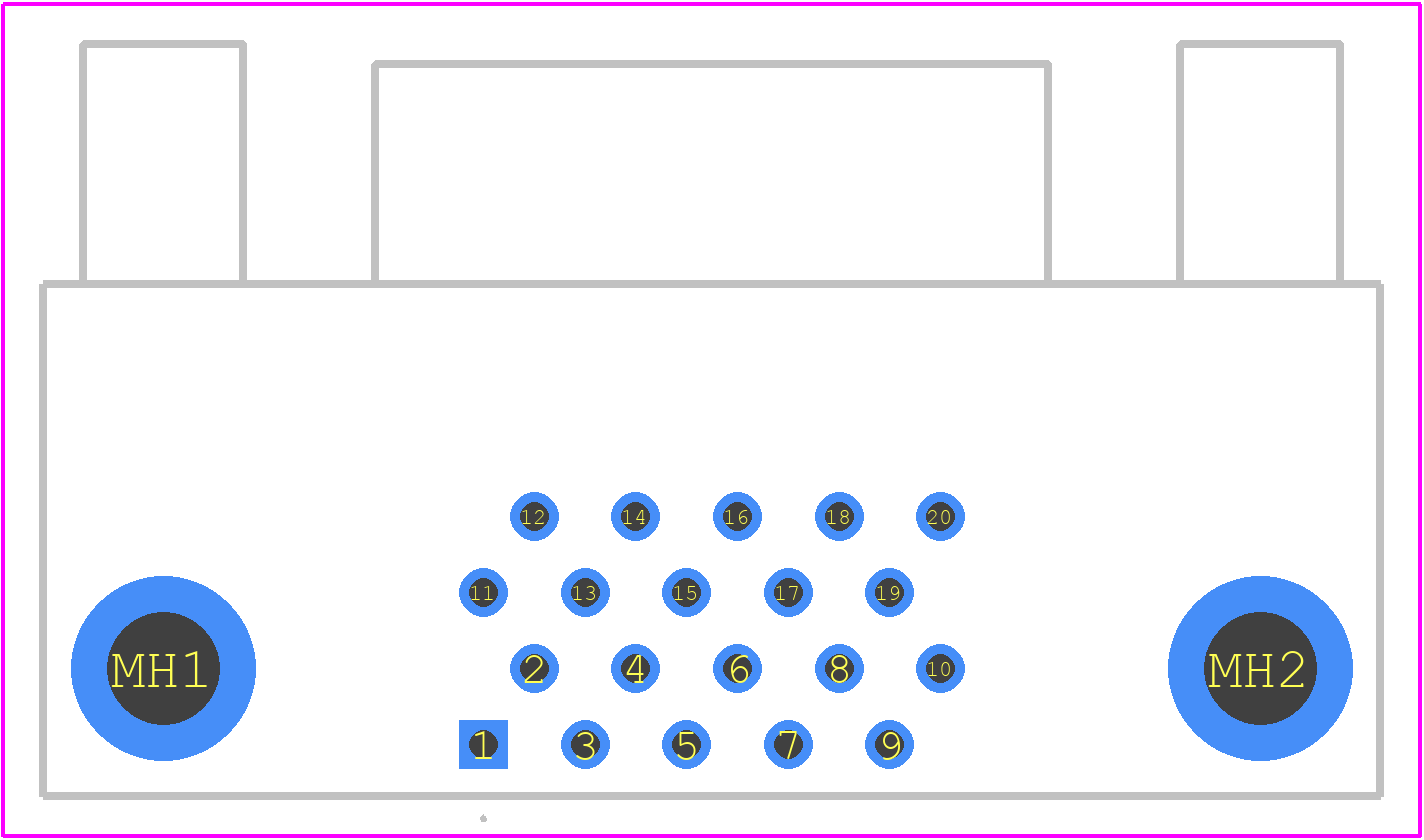

PCB Footprints

DX10A-20S(50) - Hirose PCB footprint - Other - Other - DX10A-20S(50)-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DX10A-20S(50)
Part Number DX10A-20S(50)
Manufacturer Hirose
Pin Count 22
Part Category Connector
Package Category Other
Footprint Name Other - DX10A-20S(50)-1
Released Date Feb 14, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DX10A-20S(50) Details

Manufacturer Part Number:
DX10A-20S(50)
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
12 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
3
Connector Type:
TELECOM AND DATACOM CONNECTOR

DX10A-20S(50) Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in).
Yes, the DX10A-20S(50) is designed to withstand vibrations up to 10 Hz to 2000 Hz, 10 G acceleration, and 3 mm amplitude.
The DX10A-20S(50) has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to use additional sealing or protection for extended outdoor use.
The operating temperature range for the DX10A-20S(50) is -40°C to 105°C (-40°F to 221°F).
The DX10A-20S(50) has a current rating of 3 A per contact. For high-current applications, it's recommended to derate the current or use multiple contacts in parallel.

Trust Checks

Expert Contribution

System Verified

Community Approved

DX10A-20S(50) Overview

Use the download button to access the DX10A-20S(50) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DX10A, or try a keyword search, such as Telecom and Datacom Connectors
