DX10A-28S(50) - Hirose

Description: I/O Connectors 28P F R/A RECEPTACLE THRU HOLE GLD SCR L

Download DX10A-28S(50) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

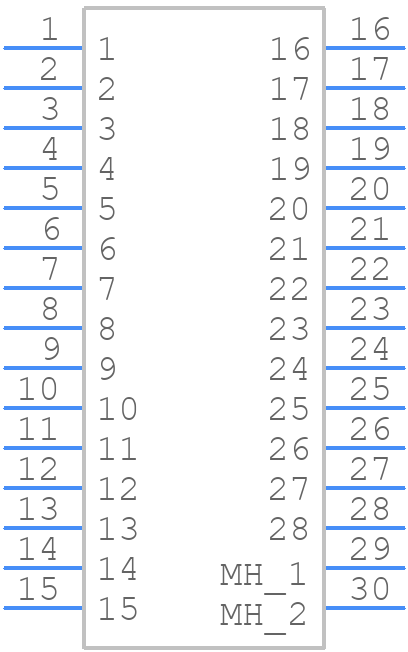

DX10A-28S(50) - Hirose - PCB symbol
click to zoom
PCB Footprints

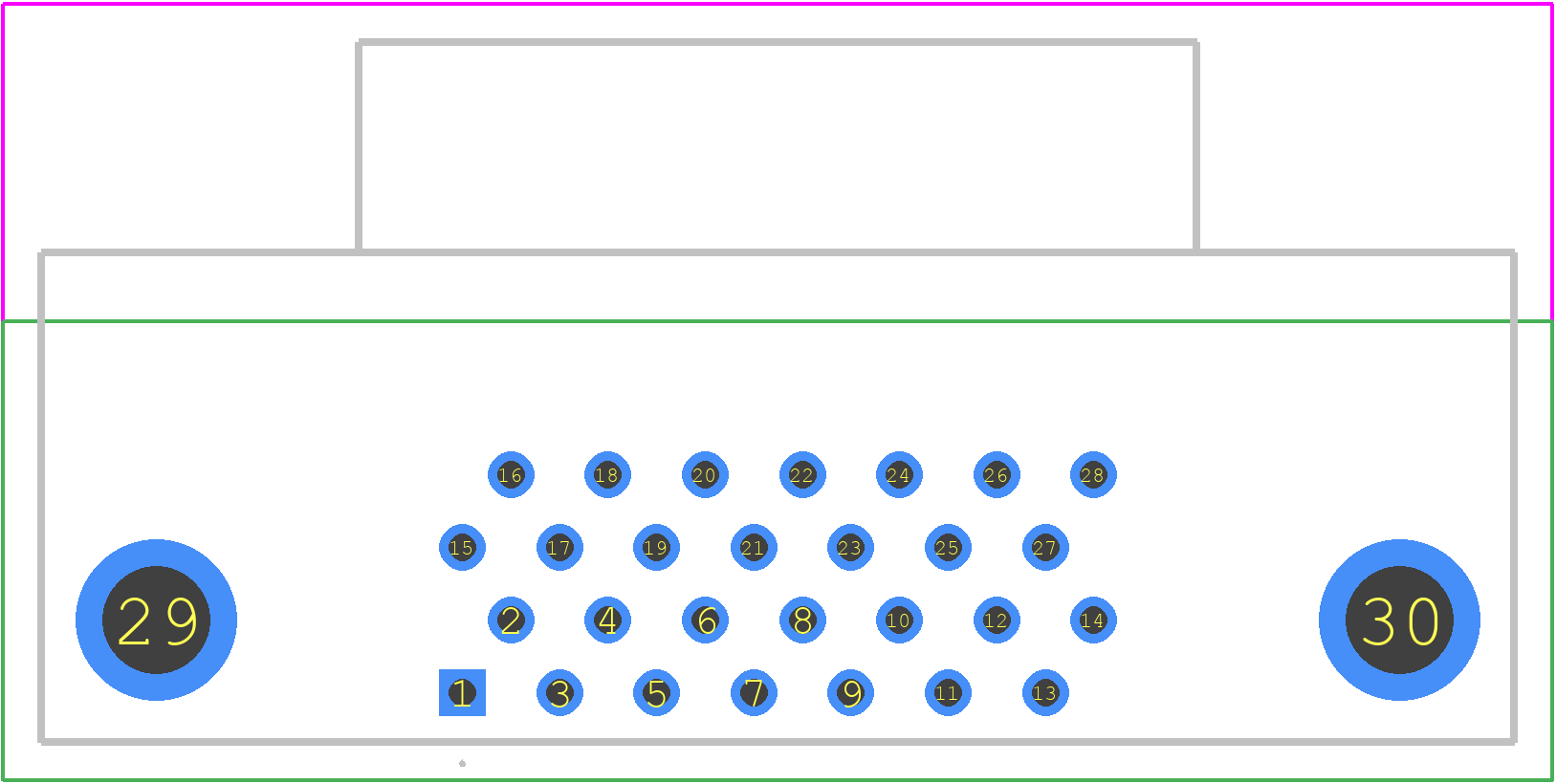

DX10A-28S(50) - Hirose PCB footprint - Other - Other - DX10A-28S(50)-1
click to zoom
3D Models
DX10A-28S(50) - Hirose - 3D model - Other - DX10A-28S(50)-1
click to zoom

DX10A-28S(50) Details

  • Manufacturer Part Number:

    DX10A-28S(50)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    3

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

DX10A-28S(50) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m (0.36 lbf·in to 1.07 lbf·in).
  • Yes, the DX10A-28S(50) is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G acceleration.
  • Yes, the DX10A-28S(50) has a rating of IP67, which means it is protected against dust and water immersion up to 1 meter for 30 minutes.
  • The operating temperature range for the DX10A-28S(50) is -40°C to 105°C (-40°F to 221°F).
  • The DX10A-28S(50) has a current rating of 3A per contact, making it suitable for moderate-current applications. However, it's not recommended for high-current applications above 5A.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
