- Part Number DX10A-50S(50)
- Manufacturer Hirose
- Pin Count 52
- Part Category Connector
- Package Category Other

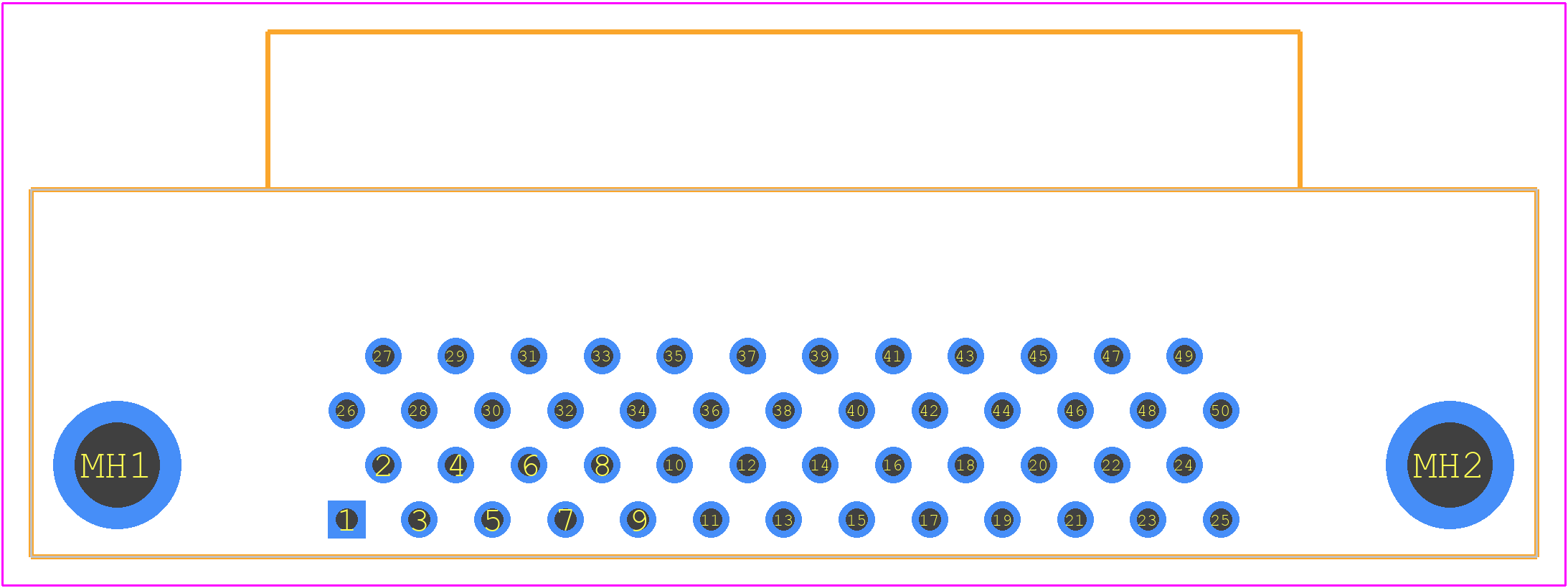

- Footprint Name Other - DX10A-50S(50)-1
- Released Date Nov 23, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DX10A-50S(50) Details
-
Manufacturer Part Number:
DX10A-50S(50)
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
3
-
Connector Type:
TELECOM AND DATACOM CONNECTOR
DX10A-50S(50) Frequently Asked Questions (FAQs)
-
The recommended torque value is 0.5 N·m to 1.5 N·m (5 kgf·cm to 15 kgf·cm) for the screw locks.
-
Yes, the DX10A-50S(50) is designed to withstand vibrations up to 10 G (10 m/s²) in the frequency range of 10 Hz to 2 kHz.
-
The operating temperature range is -40°C to 105°C (-40°F to 221°F).
-
Yes, the DX10A-50S(50) is compatible with lead-free soldering processes.
-
The recommended mating cycle is 500 cycles minimum.
Trust Checks
Expert Contribution
System Verified
Community Approved
DX10A-50S(50) Overview
Use the download button to access the DX10A-50S(50) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DX10A,
or try a keyword search, such as Telecom and Datacom Connectors
