DX10A-68S(50) footprint, schematic symbol and 3D model by Hirose

Symbol

click to zoom

PCB Footprints

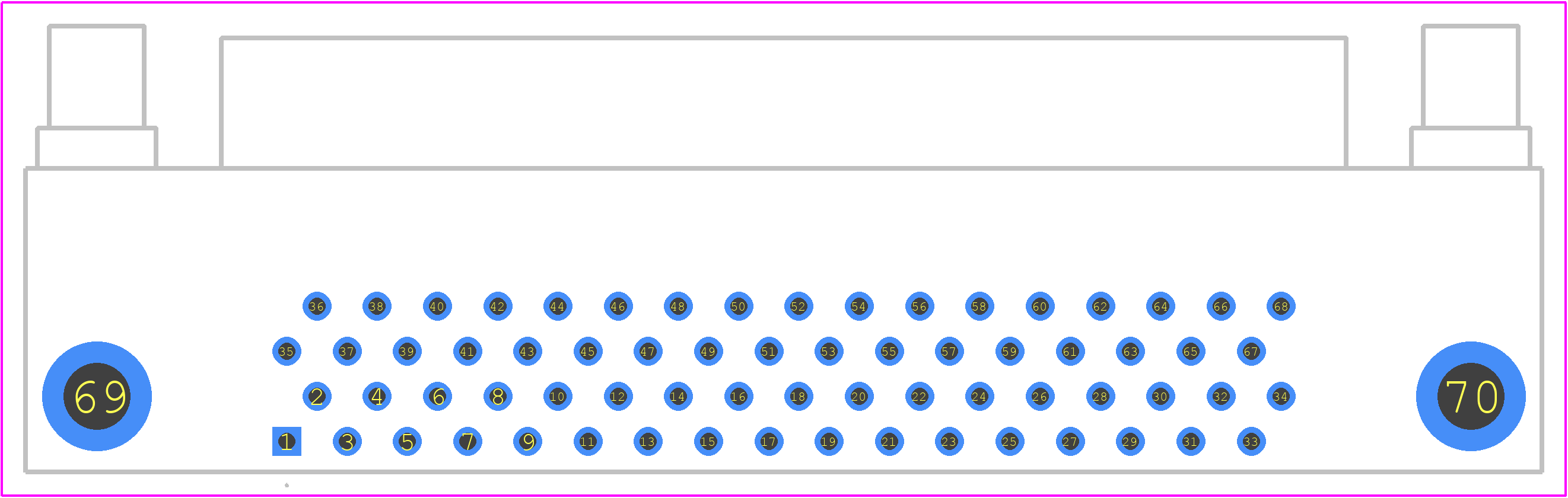

DX10A-68S(50) - Hirose PCB footprint - Other - Other - DX10A-68S(50)-5

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DX10A-68S(50)
Part Number DX10A-68S(50)
Manufacturer Hirose
Pin Count 70
Part Category Connector
Package Category Other
Footprint Name Other - DX10A-68S(50)-5
Released Date Oct 16, 2018
Last Modified Date Jun 9, 2025 7:35 AM UTC
Pinout / Pin List Click Here (Member Only)

DX10A-68S(50) Details

Manufacturer Part Number:
DX10A-68S(50)
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
12 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
3
Connector Type:
TELECOM AND DATACOM CONNECTOR

DX10A-68S(50) Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m (0.36 lbf·in to 1.07 lbf·in).
Yes, the DX10A-68S(50) is designed to withstand vibrations up to 10 G (10 m/s²) in the frequency range of 10 Hz to 2 kHz.
The DX10A-68S(50) has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to use additional sealing or protective measures for extended outdoor use.
The operating temperature range for the DX10A-68S(50) is -40°C to 105°C (-40°F to 221°F).
The DX10A-68S(50) is rated for a maximum current of 3 A per contact. If you need higher current ratings, consider using multiple contacts in parallel or selecting a different connector model.

Trust Checks

Community Provided

System Verified

Community Approved

DX10A-68S(50) Overview

Use the download button to access the DX10A-68S(50) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DX10A, or try a keyword search, such as Telecom and Datacom Connectors
