Part Image

DX10BM-80S(50) - Hirose

Description: 80 Position Receptacle Connector Miniature High Density (HD) Panel Mount, Through Hole, Right Angle Solder

Download DX10BM-80S(50) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DX10BM-80S(50) - Hirose - PCB symbol
click to zoom

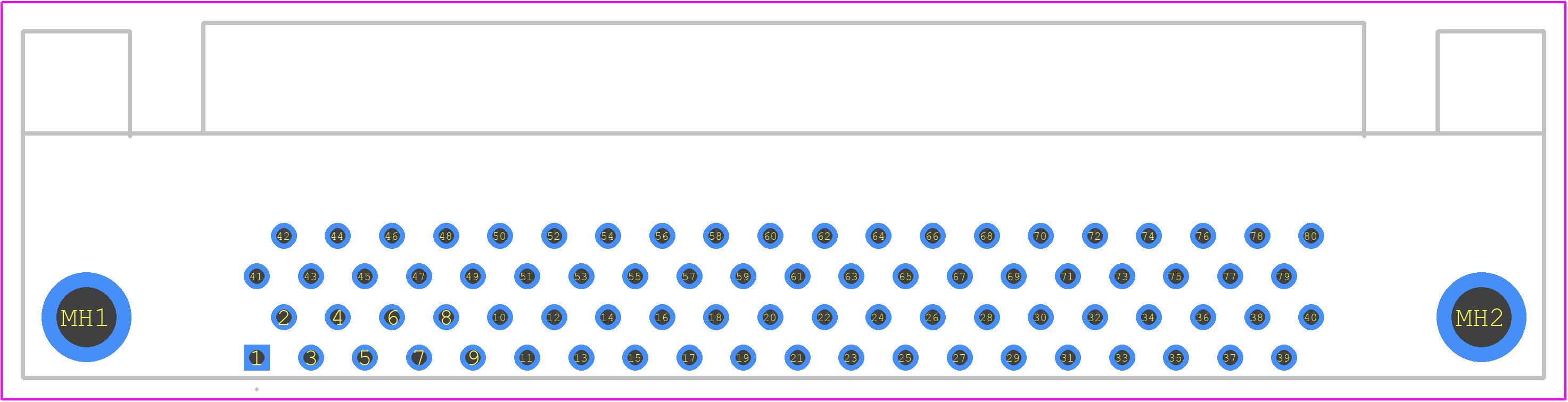

PCB Footprints
DX10BM-80S(50) - Hirose PCB footprint - Other - Other - DX10BM-80S(50)-3
click to zoom

DX10BM-80S(50) Details

  • Manufacturer Part Number:

    DX10BM-80S(50)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    7.1

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

DX10BM-80S(50) Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal contacts. This ensures proper alignment and prevents damage to the connector.
  • Yes, the DX10BM-80S(50) connector is designed to withstand high-vibration environments. However, it's essential to follow the recommended torque values and mounting procedures to ensure reliable connections.
  • The maximum operating temperature range for the DX10BM-80S(50) connector is -40°C to 105°C. However, it's recommended to consult the datasheet for specific temperature ratings for each component.
  • Yes, the DX10BM-80S(50) connector is designed for automated assembly processes. It features a pick-and-place compatible design and can be easily integrated into automated production lines.
  • The recommended cleaning process for the DX10BM-80S(50) connector involves using a soft brush and a mild detergent solution. Avoid using harsh chemicals or abrasive materials that can damage the connector's components.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DX10BM-80S(50) Overview

Use the download button to access the DX10BM-80S(50) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DX10B, or try a keyword search, such as Telecom and Datacom Connectors
