DXTN10060DFJBQ-7 - Diodes Incorporated

Description: Bipolar Transistors - BJT SS Low Sat Transist

Download DXTN10060DFJBQ-7 Model

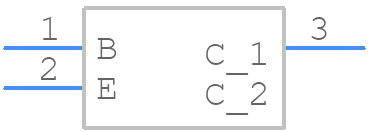

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DXTN10060DFJBQ-7 - Diodes Incorporated PCB footprint - Other - Other - U-DFN2020-3 (Type B)_24
click to zoom
3D Models
DXTN10060DFJBQ-7 - Diodes Incorporated  - 3D model - Other - U-DFN2020-3 (Type B)_24
click to zoom

DXTN10060DFJBQ-7 Details

  • Manufacturer Part Number:

    DXTN10060DFJBQ-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    U-DFN2020-3, 3 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    4

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    4 A

  • Collector-Base Capacitance-Max:

    14 pF

  • Collector-Emitter Voltage-Max:

    60 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    20

  • JESD-30 Code:

    S-PDSO-N3

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Power Dissipation-Max (Abs):

    1.8 W

  • Reference Standard:

    AEC-Q101; IATF 16949; MIL-STD-202

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    125 MHz

  • VCEsat-Max:

    0.32 V

DXTN10060DFJBQ-7 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the DXTN10060DFJBQ-7 can be found in the Diodes Incorporated's package outline drawing, which is usually available on their website or through their customer support. The package code is DFN1006-6, and the recommended footprint dimensions are typically provided in the datasheet or in a separate application note.
  • To ensure proper soldering, follow the recommended soldering profile and guidelines provided in the datasheet or in Diodes Incorporated's application notes. Use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste to the PCB pads. Avoid applying excessive heat or pressure, which can damage the device.
  • The maximum operating temperature range for the DXTN10060DFJBQ-7 is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures, so it's recommended to operate the device within a narrower temperature range if possible.
  • The DXTN10060DFJBQ-7 is a commercial-grade device, and its reliability and performance may not meet the requirements of high-reliability or automotive applications. Diodes Incorporated offers other devices with enhanced reliability and performance features, such as the AEC-Q100 qualified devices, which may be more suitable for these applications.
  • The DXTN10060DFJBQ-7 is an ESD-sensitive device, and it's essential to handle it with care to prevent damage. Use ESD-protective equipment, such as wrist straps, mats, and bags, during handling and assembly. Avoid touching the device's pins or exposed pads, and ensure that the PCB and assembly equipment are properly grounded.
