DXTP3C60PS-13 - Diodes Incorporated

Description: Bipolar Transistors - BJT SS Low Sat Transistor

Download DXTP3C60PS-13 Model

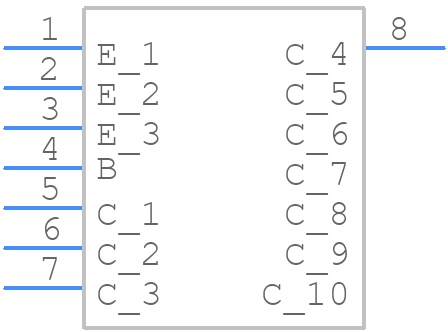

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DXTP3C60PS-13 - Diodes Incorporated PCB footprint - Other - Other - PowerDI5060-8_2021_1
click to zoom
3D Models
DXTP3C60PS-13 - Diodes Incorporated  - 3D model - Other - PowerDI5060-8_2021_1
click to zoom

DXTP3C60PS-13 Details

  • Manufacturer Part Number:

    DXTP3C60PS-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    4

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    3 A

  • Collector-Emitter Voltage-Max:

    60 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    35

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    PNP

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DXTP3C60PS-13 Frequently Asked Questions (FAQs)

  • For optimal thermal performance, it is recommended to use a 2-layer or 4-layer PCB with a thermal relief pattern under the package. A minimum of 2 oz copper thickness is recommended. Additionally, a thermal via array under the package can help to dissipate heat more efficiently.
  • To ensure reliable operation at high temperatures, it is essential to follow the recommended derating curves for the device. Additionally, ensure that the device is properly mounted on a heat sink, and the PCB is designed to minimize thermal resistance. It is also crucial to follow the recommended storage and handling procedures to prevent damage to the device.
  • The DXTP3C60PS-13 is a sensitive device and requires proper ESD protection during handling and assembly. It is recommended to use an ESD wrist strap or mat, and to handle the device by the body or leads only. Avoid touching the pins or die, and ensure that the device is stored in an anti-static bag or container.
  • Yes, the DXTP3C60PS-13 is suitable for high-reliability and automotive applications. However, it is essential to follow the recommended qualification and testing procedures to ensure the device meets the required standards. Additionally, it is recommended to consult with Diodes Incorporated's application engineers to ensure the device meets the specific requirements of the application.
  • The recommended soldering temperature for the DXTP3C60PS-13 is between 240°C to 260°C. It is essential to follow the recommended soldering profile and to avoid overheating the device. Additionally, ensure that the device is properly cleaned and dried before assembly to prevent contamination.
