A good PCB layout for the DZT5401-13 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure a low-thermal-resistance path to the PCB's ground plane. Use multiple vias to connect the thermal pad to the ground plane, and keep the thermal path as short as possible.
To ensure the DZT5401-13's ESD protection is effective, follow proper handling and storage procedures to prevent ESD damage. Use an ESD wrist strap or mat when handling the device, and store it in an anti-static bag or container. During PCB assembly, use ESD-safe tools and materials, and ensure the PCB is properly grounded.
The DZT5401-13 is rated for operation between -40°C and 125°C. Ensure the device operates within the recommended voltage range (4.5V to 5.5V) and current range (up to 1A). Avoid exceeding the maximum junction temperature (150°C) to prevent thermal damage.
To troubleshoot output voltage regulation issues, check the input voltage, output load, and PCB layout. Verify the input voltage is within the recommended range, and the output load is within the device's current rating. Check for any PCB layout issues, such as inadequate decoupling or poor thermal design, that may affect the device's performance.
For high-reliability applications, ensure the device is operated within its recommended specifications, and follow proper derating guidelines. Implement adequate thermal management, and consider using redundant or fault-tolerant designs to minimize the risk of single-point failures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DZT5401-13 Overview

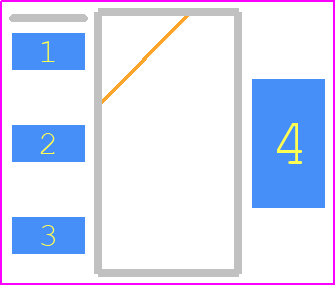

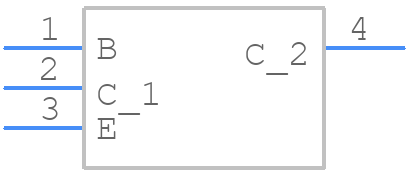

Use the download button to access the DZT5401-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DZT54,
or try a keyword search, such as Small Signal Bipolar Transistors
