- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for E-L6219R
- Part Number E-L6219R
- Manufacturer STMicroelectronics
- Pin Count 24
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO-24
- Released Date Aug 27, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
E-L6219R Details
-
Manufacturer Part Number:
E-L6219R
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
LEAD FREE, SOP-24
-
Pin Count:
24
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
30 Weeks
-
Manufacturer:
STMicroelectronics
E-L6219R Frequently Asked Questions (FAQs)
-
A good PCB layout for the E-L6219R should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour around the device to dissipate heat efficiently. Avoid routing high-current traces near the device to minimize thermal resistance.
-
To ensure reliable start-up and shutdown, ensure that the input voltage rises and falls monotonically, and that the enable pin (EN) is properly driven. A soft-start circuit can also be implemented to limit inrush current and prevent voltage drops during start-up.
-
When selecting Cout, consider the output voltage ripple, output current, and stability requirements. A general rule of thumb is to choose a capacitor with a capacitance value between 10uF to 100uF, and a voltage rating that exceeds the output voltage. Ensure the capacitor's ESR is low enough to minimize voltage ripple.
-
To minimize EMI, use a shielded inductor, keep the layout compact, and avoid routing high-frequency traces near sensitive components. Implement a common-mode choke or a ferrite bead on the input and output lines to reduce radiated emissions. Ensure the PCB is properly grounded and decoupled.
-
Thermal management is critical for the E-L6219R. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Monitor the device's junction temperature (TJ) and ensure it stays within the recommended operating range (typically -40°C to 150°C).
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
E-L6219R Overview

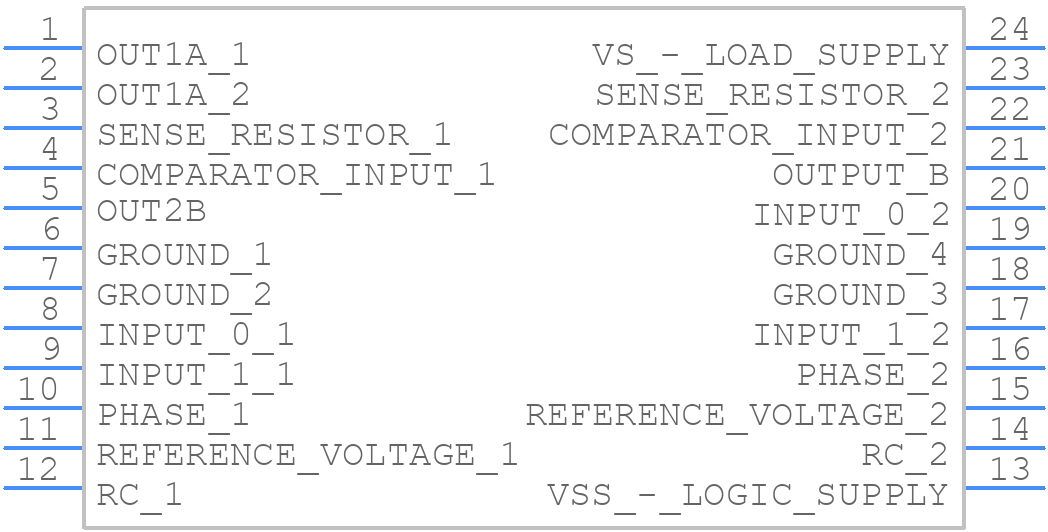

Use the download button to access the E-L6219R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like E-L62,
or try a keyword search, such as Motion Control Electronics
