- Part Number E-L6219R013TR
- Manufacturer STMicroelectronics
- Pin Count 24
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO-24_
- Released Date Aug 27, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
E-L6219R013TR Details
-
Manufacturer Part Number:
E-L6219R013TR
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
LEAD FREE, SOP-24
-
Pin Count:
24
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
30 Weeks
-
Manufacturer:
STMicroelectronics
E-L6219R013TR Frequently Asked Questions (FAQs)
-
STMicroelectronics recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
-
To ensure reliable operation at high temperatures, ensure that the device is operated within the recommended temperature range, and that the PCB is designed to minimize thermal resistance. Additionally, consider using thermal interface materials and heat sinks to improve heat dissipation.
-
STMicroelectronics recommends using X7R or X5R ceramic capacitors with a voltage rating of 10V or higher for the input and output capacitors. The recommended capacitance values are 10uF for the input capacitor and 22uF for the output capacitor.
-
To protect the device from overvoltage and undervoltage conditions, consider using a voltage supervisor or a power-on reset circuit to monitor the input voltage and reset the device if it falls outside the recommended operating range.
-
To minimize EMI, STMicroelectronics recommends using a compact layout with short traces, avoiding loops and sharp corners, and using a ground plane to shield the device. Additionally, consider using EMI filters or common-mode chokes to reduce emissions.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
E-L6219R013TR Overview

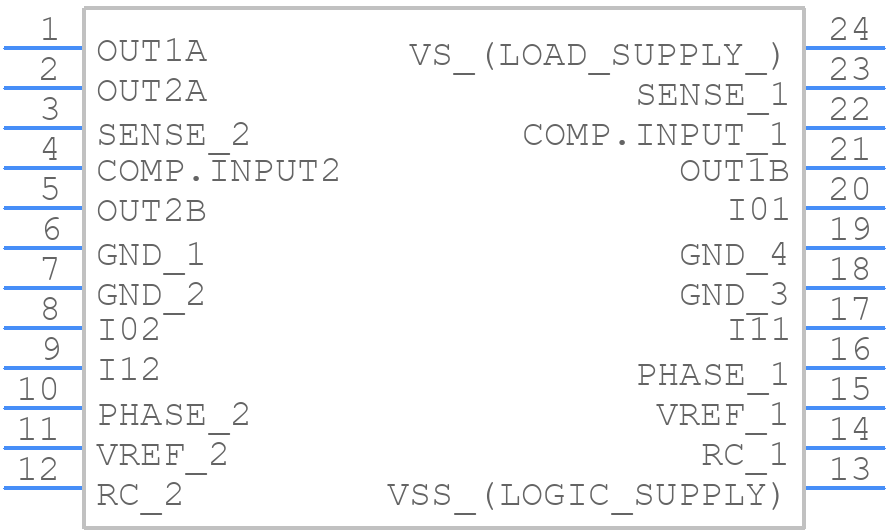

Use the download button to access the E-L6219R013TR schematic symbol, PCB footprint, and 3D model.
