Part Image

E-PBL3717A - STMicroelectronics

Description: Motor/Motion/Ignition Controllers & Drivers Quad Transistor

Download E-PBL3717A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

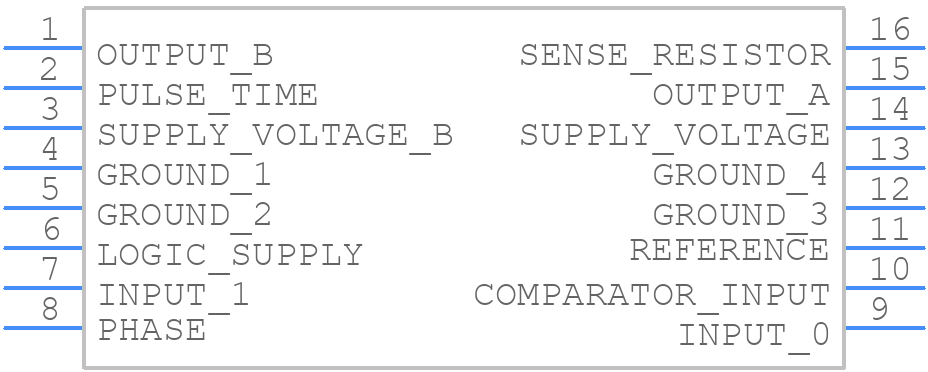

Symbol
E-PBL3717A - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
E-PBL3717A - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - Plastic DIP-16
click to zoom
3D Models
E-PBL3717A - STMicroelectronics - 3D model - Dual-In-Line Packages - Plastic DIP-16
click to zoom

E-PBL3717A Details

  • Manufacturer Part Number:

    E-PBL3717A

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    POWER, DIP-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDIP-T16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    1.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.1 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

E-PBL3717A Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the E-PBL3717A is -40°C to 125°C.
  • The E-PBL3717A requires a 3.3V or 5V power supply, and it's recommended to use a decoupling capacitor (e.g., 100nF) close to the device to filter out noise and ensure stable operation.
  • The maximum current rating for the E-PBL3717A is 150mA per channel, with a total current limit of 300mA for all channels combined.
  • The E-PBL3717A can be configured for I2C or SPI communication by setting the MODE pin accordingly. For I2C, connect the MODE pin to VCC, and for SPI, connect it to GND.
  • The EN (Enable) pin is used to enable or disable the device. When EN is set to logic high, the device is enabled, and when it's set to logic low, the device is disabled and enters a low-power state.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

E-PBL3717A Overview

Use the download button to access the E-PBL3717A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like E-PBL, or try a keyword search, such as Motion Control Electronics

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut

Parts related to E-PBL3717A

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

E-PBL3717A Alternates

Showing results

Image Part Number Model
Part Image UC3717ANG4 Texas Instruments

Stepper Motor Controller, 1A, BIPolar, PDIP16
Part Image PBL3717A STMicroelectronics

Stepper Motor Controller, 1.2A, BIPolar, PDIP16
Part Image PBL3717/2NS Ericsson

Stepper Motor Controller, 1.2A, BIPolar, PDIP16
Part Image CS3717AGNF16 onsemi

Stepper Motor Controller, 1A, BIPolar, PDIP16
Part Image CS-3717AN16 Cherry Semiconductor Corporation

Stepper Motor Controller, 1.2A, BIPolar, PDIP16
For a full list of alternate parts for E-PBL3717A, check out Findchips.com
