E-TDA7375V - STMicroelectronics

Description: STMicroelectronics E-TDA7375V 4-Channel Audio Amplifier, Class-AB 2 Channel Stereo, 4 Channel Stereo, 15-Pin MULTIWATT

Download E-TDA7375V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

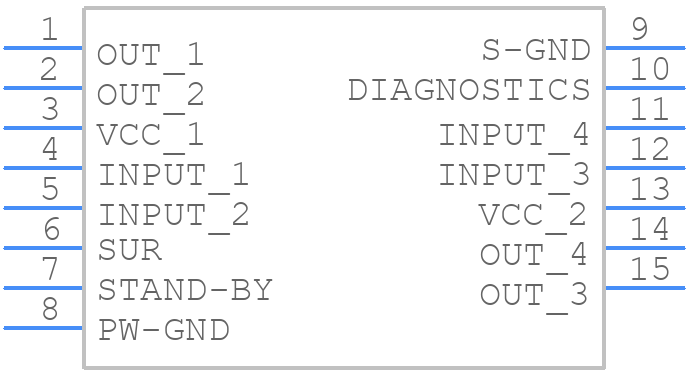

Symbol
E-TDA7375V - STMicroelectronics - PCB symbol
click to zoom

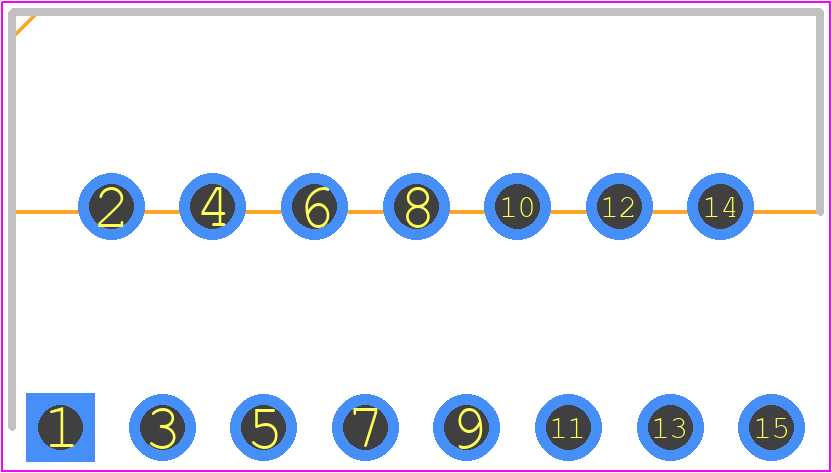

PCB Footprints
E-TDA7375V - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - Multiwatt15 V
click to zoom
3D Models
E-TDA7375V - STMicroelectronics - 3D model - Transistor Outline, Vertical - Multiwatt15 V
click to zoom

E-TDA7375V Details

  • Manufacturer Part Number:

    E-TDA7375V

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    ZFM

  • Package Description:

    MULTIWATT V-15

  • Pin Count:

    15

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZFM-T15

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Output Power-Nom:

    40 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    ZIG-ZAG

E-TDA7375V Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2863, which includes guidelines for component placement, routing, and thermal management.
  • To minimize noise, use a low-ESR capacitor for the power supply, keep the input and output tracks as short as possible, and use a ground plane to reduce electromagnetic interference (EMI).
  • The maximum power dissipation of the E-TDA7375V is dependent on the ambient temperature and the thermal resistance of the package. Refer to the thermal management section in the datasheet for more information.
  • The E-TDA7375V is rated for operation up to 150°C, but the maximum junction temperature (Tj) should not exceed 150°C. Ensure proper thermal management and consider derating the device for high-temperature applications.
  • Start by checking the power supply voltage, input and output signals, and thermal management. Use an oscilloscope to verify signal integrity and check for signs of overheating or electrical overstress.
