E-TDA7385 - STMicroelectronics

Description: 4 x 42 W quad bridge car radio amplifier

Download E-TDA7385 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

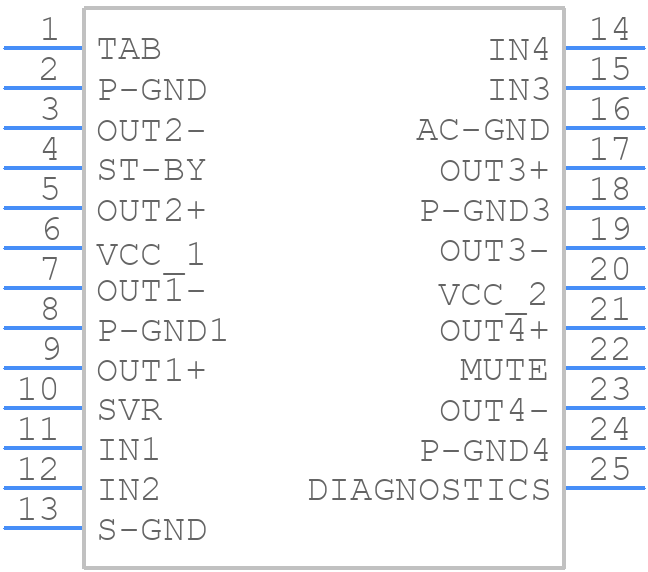

E-TDA7385 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

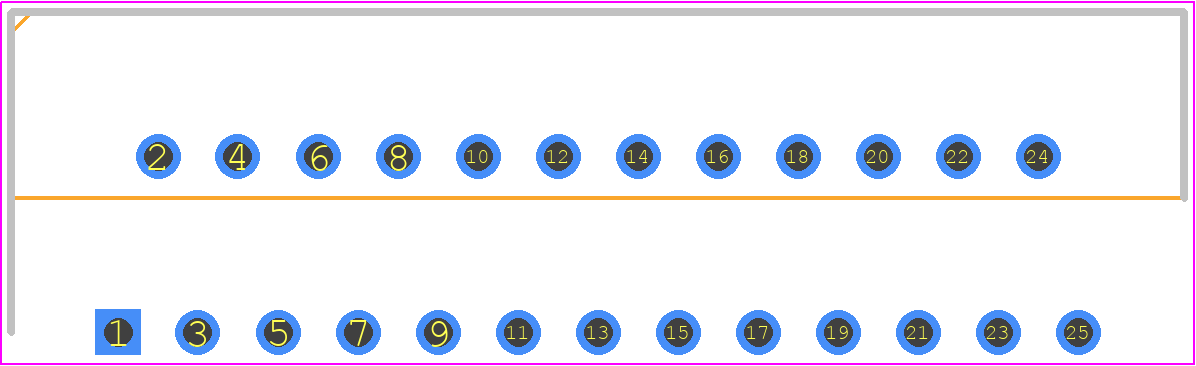

E-TDA7385 - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - Flexiwatt25 (vertical)
click to zoom
3D Models
E-TDA7385 - STMicroelectronics - 3D model - Transistor Outline, Vertical - Flexiwatt25 (vertical)
click to zoom

E-TDA7385 Details

  • Manufacturer Part Number:

    E-TDA7385

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    ZIP

  • Package Description:

    ROHS COMPLIANT, FLEXIWATT-25

  • Pin Count:

    25

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZIP-T25

  • JESD-609 Code:

    e3

  • Length:

    29.23 mm

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Output Power-Nom:

    35 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SZIP

  • Package Equivalence Code:

    ZIP25,.16,.16,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    19.37 mm

  • Supply Current-Max:

    300 mA

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    ZIG-ZAG

  • Width:

    4.5 mm

E-TDA7385 Frequently Asked Questions (FAQs)

  • A good PCB layout for the E-TDA7385 involves keeping the power supply lines (VIN and VOUT) as short as possible, using a star connection for the ground pins, and placing the input and output capacitors close to the IC. A 4-layer PCB with a solid ground plane is recommended.
  • Choose X7R or X5R ceramic capacitors with a voltage rating of at least 1.5 times the input voltage. The capacitance value depends on the application, but a good starting point is 10uF for the input capacitor and 22uF for the output capacitor.
  • The maximum ambient temperature for the E-TDA7385 is 85°C, but it can be derated to 70°C for high-reliability applications. Ensure good heat dissipation and consider using a heat sink if the device will be operating at high temperatures.
  • Use a voltage supervisor or a reset IC to monitor the input voltage and reset the E-TDA7385 if it falls outside the recommended range (7V to 18V). You can also add a voltage clamp or a TVS diode to protect against overvoltage transients.
  • Yes, but take precautions to minimize electromagnetic interference (EMI). Use a shielded enclosure, keep the PCB layout compact, and add EMI filters or ferrite beads to the input and output lines if necessary.
