E-TDA7391PD - STMicroelectronics

Description: Audio Amplifiers 32W BRIDGE AMPLIFIER

Download E-TDA7391PD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

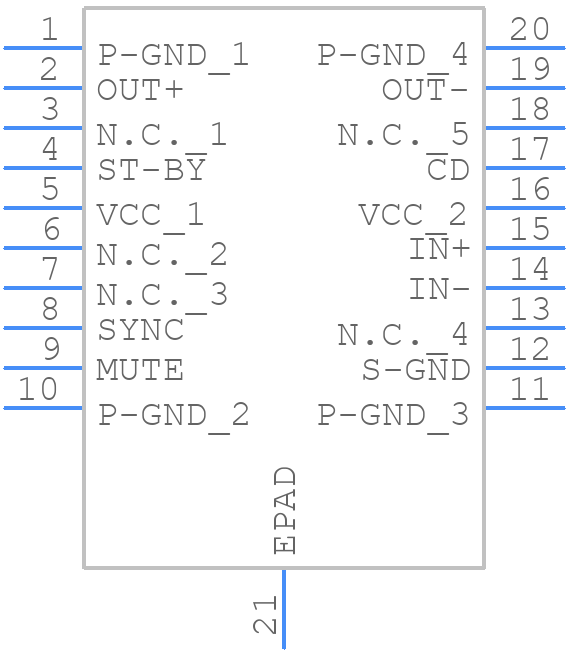

Symbol
E-TDA7391PD - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
E-TDA7391PD - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - ST PowerSO20
click to zoom
3D Models
E-TDA7391PD - STMicroelectronics - 3D model - Small Outline Packages - ST PowerSO20
click to zoom

E-TDA7391PD Details

  • Manufacturer Part Number:

    E-TDA7391PD

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-20

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.35

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Output Power-Nom:

    32 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP20,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.6 mm

  • Supply Current-Max:

    150 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11 mm

E-TDA7391PD Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2341, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • STMicroelectronics recommends following the guidelines in the application note AN2679 for EMC design considerations, including PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI) and ensure compliance with regulatory standards.
  • While the datasheet specifies the recommended operating conditions, it's essential to note that the absolute maximum rating for the input pins is 7V, exceeding which can cause permanent damage to the device.
  • STMicroelectronics provides a troubleshooting guide in the application note AN2342, which covers common issues, diagnostic techniques, and repair procedures to help engineers quickly identify and resolve problems with the device.
  • Yes, the E-TDA7391PD is AEC-Q100 qualified, making it suitable for automotive applications. However, it's essential to ensure that the device is used within the recommended operating conditions and that the system design meets the required automotive standards and regulations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

E-TDA7391PD Overview

Use the download button to access the E-TDA7391PD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like E-TDA, or try a keyword search, such as Audio/Video Amplifiers
