E-TDA7396 - STMicroelectronics

Description: STMicroelectronics E-TDA7396 Audio Amplifier, Class-AB CMOS, Rail to Rail, Swing 75 (Min)kHz 70dB, 11-Pin MULTIWATT

Download E-TDA7396 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

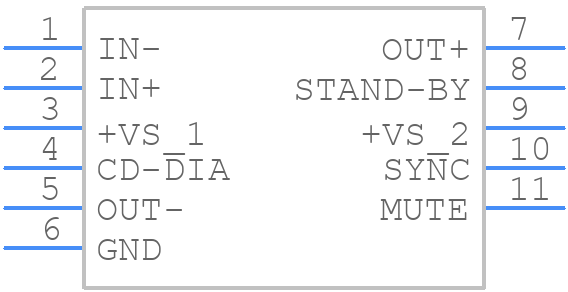

Symbol
E-TDA7396 - STMicroelectronics - PCB symbol
click to zoom

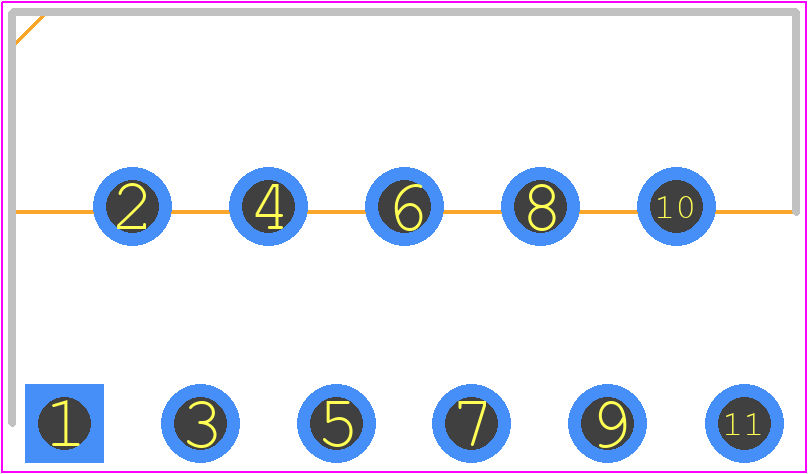

PCB Footprints
E-TDA7396 - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - Multiwatt11 V
click to zoom
3D Models
E-TDA7396 - STMicroelectronics - 3D model - Transistor Outline, Vertical - Multiwatt11 V
click to zoom

E-TDA7396 Details

  • Manufacturer Part Number:

    E-TDA7396

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    ZFM

  • Package Description:

    MULTIWATT-11

  • Pin Count:

    11

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Gain:

    26 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZFM-T11

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    11

  • Output Power-Nom:

    45 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZFM

  • Package Equivalence Code:

    ZIP11(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    ZIG-ZAG

E-TDA7396 Frequently Asked Questions (FAQs)

  • A good PCB layout for the E-TDA7396 involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane to minimize noise and EMI.
  • To optimize the E-TDA7396 for low noise and distortion, use a high-quality power supply with low ripple, keep the input and output tracks short and symmetrical, and use a low-ESR capacitor for decoupling. Additionally, ensure that the device is operated within its recommended operating conditions.
  • The maximum power dissipation of the E-TDA7396 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
  • Yes, the E-TDA7396 can be used in a Class-D amplifier design. However, it's essential to ensure that the device is operated within its recommended operating conditions, and the output stage is properly designed to handle the high-frequency switching signals.
  • To protect the E-TDA7396 from overvoltage and overcurrent, use a voltage regulator with overvoltage protection, and add a current-limiting resistor or a fuse in series with the power supply. Additionally, consider using a TVS diode or a zener diode to clamp the voltage and prevent damage from voltage spikes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

E-TDA7396 Overview

Use the download button to access the E-TDA7396 schematic symbol, PCB footprint, and 3D model.
