E-TDA7560 - STMicroelectronics

Description: 4 X 51 W quad bridge car radio amplifier

Download E-TDA7560 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

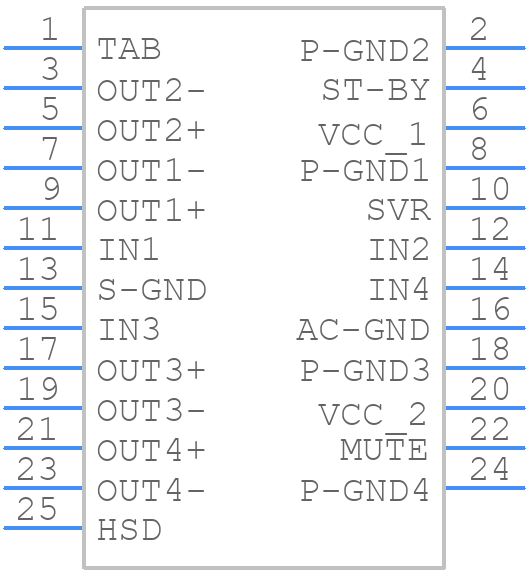

E-TDA7560 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

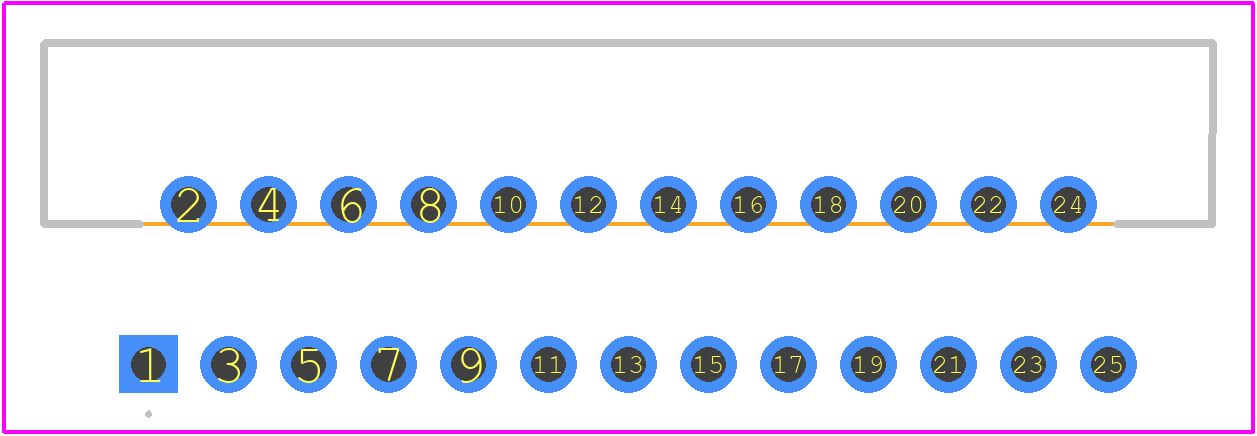

E-TDA7560 - STMicroelectronics PCB footprint - Other - Other - FLEXIWATT FM2 25_2022-2
click to zoom
3D Models
E-TDA7560 - STMicroelectronics - 3D model - Other - FLEXIWATT FM2 25_2022-2
click to zoom

E-TDA7560 Details

  • Manufacturer Part Number:

    E-TDA7560

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    ZFM

  • Package Description:

    ROHS COMPLIANT, FLEXIWATT-25

  • Pin Count:

    25

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Gain:

    26 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZFM-T25

  • JESD-609 Code:

    e3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Output Power-Nom:

    55 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    13.2 V

  • Surface Mount:

    NO

  • Technology:

    BCDMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    ZIG-ZAG

E-TDA7560 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2863, which includes guidelines for component placement, routing, and thermal management.
  • To optimize the E-TDA7560 for low power consumption, use the lowest possible supply voltage, disable unused features, and adjust the clock frequency to the minimum required for the application. Additionally, use the power-down mode when the device is not in use.
  • The maximum junction temperature for the E-TDA7560 is 150°C. It is essential to ensure proper thermal management to prevent overheating, which can affect the device's reliability and lifespan.
  • Yes, the E-TDA7560 is AEC-Q100 qualified, making it suitable for automotive applications. However, it is essential to follow the recommended operating conditions and ensure that the device is properly validated for the specific automotive application.
  • To troubleshoot issues with the E-TDA7560, start by checking the power supply, clock, and reset signals. Verify that the device is properly configured and that the firmware is correct. Use debugging tools, such as oscilloscopes and logic analyzers, to identify the root cause of the issue.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

E-TDA7560 Overview

Use the download button to access the E-TDA7560 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like E-TDA, or try a keyword search, such as Audio/Video Amplifiers
