Part Image

E-TDA7566 - STMicroelectronics

Description: Amplifier IC 4-Channel (Quad) Class AB 25-Flexiwatt (Vertical)

Download E-TDA7566 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

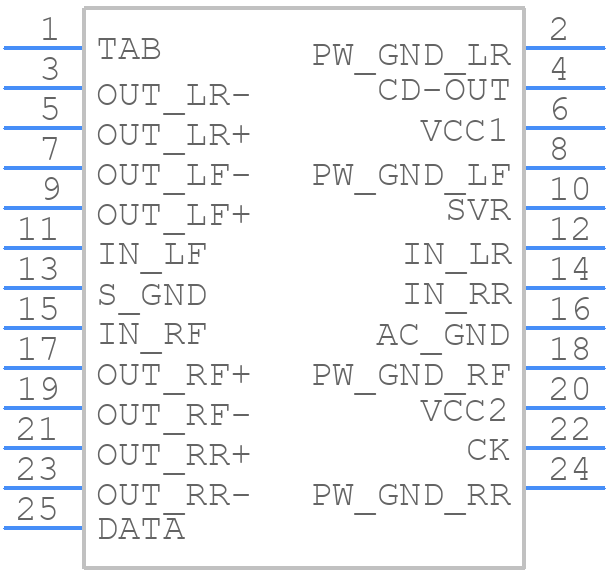

Symbol
E-TDA7566 - STMicroelectronics - PCB symbol
click to zoom

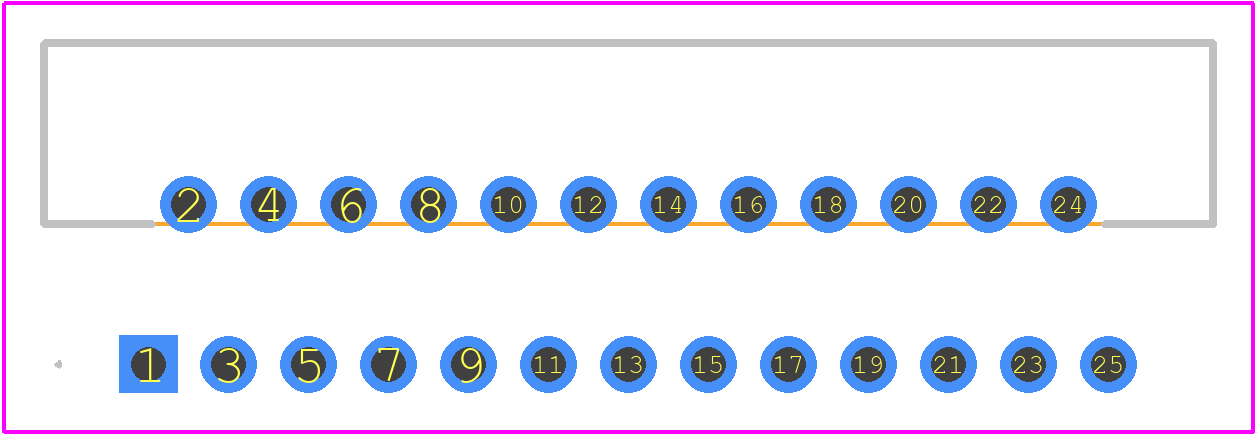

PCB Footprints
E-TDA7566 - STMicroelectronics PCB footprint - Other - Other - E-TDA7566-3
click to zoom
3D Models
E-TDA7566 - STMicroelectronics - 3D model - Other - E-TDA7566-3
click to zoom

E-TDA7566 Details

  • Manufacturer Part Number:

    E-TDA7566

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    ZFM

  • Package Description:

    ROHS COMPLIANT, FLEXIWATT-25

  • Pin Count:

    25

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-XZIP-T25

  • JESD-609 Code:

    e3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Output Power-Nom:

    60 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP25,.16,.16,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    300 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    NO

  • Technology:

    BCDMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    ZIG-ZAG

E-TDA7566 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2863, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The E-TDA7566 has multiple audio modes, including stereo, mono, and dual-mono. Configuration is done through the I2C interface by writing to the appropriate registers. Refer to the datasheet and application notes for specific register settings and configuration examples.
  • The maximum power dissipation of the E-TDA7566 is 2.5 W. However, this value can vary depending on the operating conditions, such as supply voltage, output power, and ambient temperature. Ensure proper thermal management and heat sinking to prevent overheating.
  • The E-TDA7566 has built-in short-circuit protection and overcurrent protection. These features can be enabled and configured through the I2C interface by setting the appropriate registers. Additionally, external components such as resistors and capacitors can be used to fine-tune the protection circuitry.
  • The recommended supply voltage range for the E-TDA7566 is 4.5 V to 18 V. However, the device can operate with a supply voltage as low as 3.3 V, but with reduced performance and output power.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

E-TDA7566 Overview

Use the download button to access the E-TDA7566 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like E-TDA, or try a keyword search, such as Audio/Video Amplifiers
