- Part Number E-TEA3718SFPTR
- Manufacturer STMicroelectronics
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO-20_2022_1-1
- Released Date Aug 29, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
E-TEA3718SFPTR Details
-
Manufacturer Part Number:
E-TEA3718SFPTR
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
SO-20
-
Pin Count:
20
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
45 Weeks
-
Manufacturer:
STMicroelectronics
E-TEA3718SFPTR Frequently Asked Questions (FAQs)
-
STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for thermal pad connection, thermal vias, and copper pouring to ensure optimal thermal performance.
-
To ensure reliable operation in high-temperature environments, it is recommended to follow the thermal design guidelines, use a heat sink if necessary, and consider using a thermal interface material to improve heat transfer between the device and the heat sink.
-
The recommended soldering conditions for E-TEA3718SFPTR are: peak temperature 260°C, soldering time 10-30 seconds, and a soldering iron temperature of 350°C. It is also recommended to use a solder with a melting point above 217°C.
-
To troubleshoot issues with the device not turning on, check the power supply voltage, ensure that the enable pin is properly connected, and verify that the input voltage is within the recommended range. Also, check for any short circuits or damage to the device.
-
To prevent electrostatic discharge (ESD) damage, it is recommended to handle the device in an ESD-protected environment, use ESD-protected packaging, and follow proper ESD handling procedures during assembly and testing.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
E-TEA3718SFPTR Overview

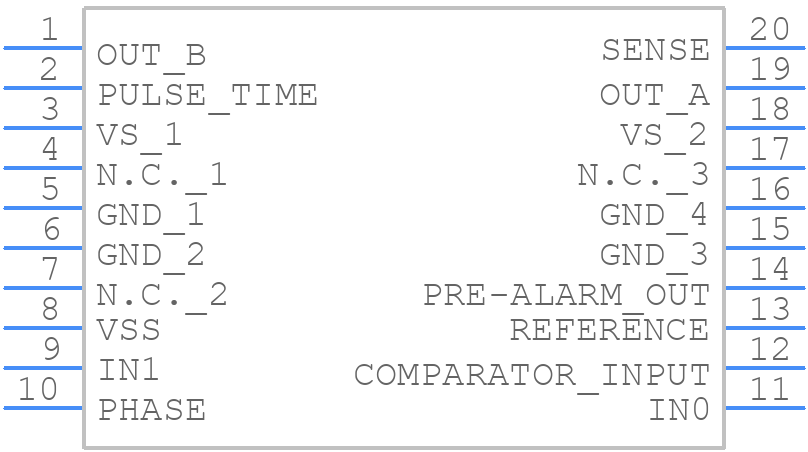

Use the download button to access the E-TEA3718SFPTR schematic symbol, PCB footprint, and 3D model.
