E-TEA3718SP - STMicroelectronics

Description: Bipolar Motor Driver Bipolar Parallel Multiwatt-15 Half Bridge (2) 1.5A 4.75V ~ 5.25V Through Hole 0°C ~ 150°C (TJ)

Download E-TEA3718SP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

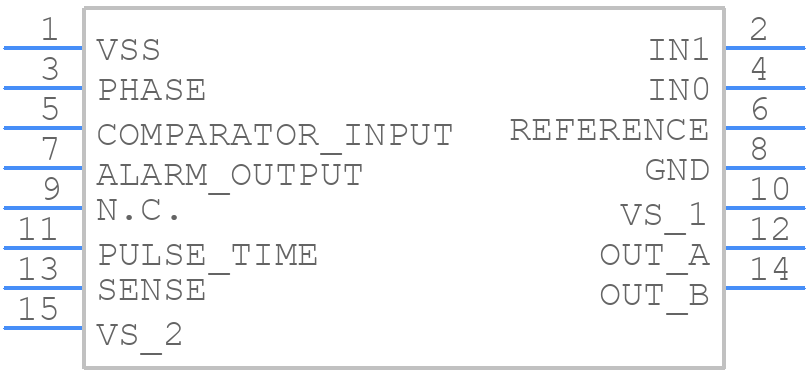

E-TEA3718SP - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

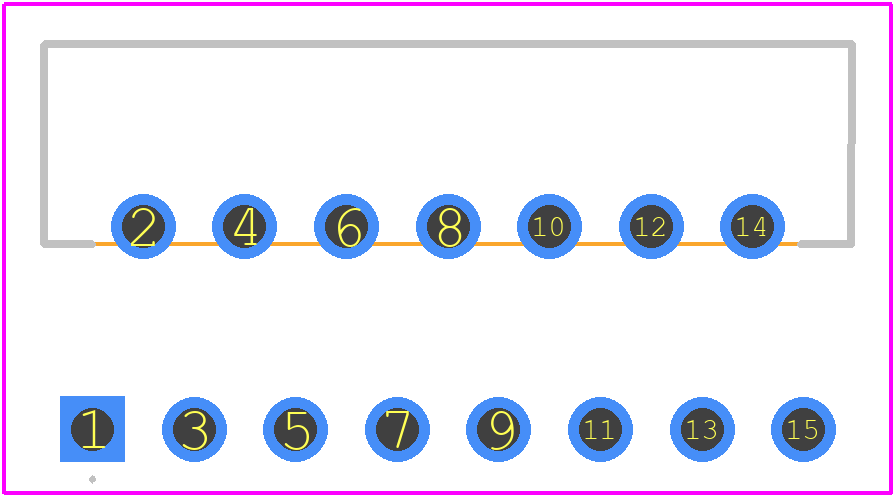

E-TEA3718SP - STMicroelectronics PCB footprint - Other - Other - Multiwatt 15_2025-1.3
click to zoom
3D Models
E-TEA3718SP - STMicroelectronics - 3D model - Other - Multiwatt 15_2025-1.3
click to zoom

E-TEA3718SP Details

  • Manufacturer Part Number:

    E-TEA3718SP

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    ZFM

  • Package Description:

    MULTIWATT-15

  • Pin Count:

    15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    ALSO REQUIRES A 10 TO 45 V SUPPLY

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PZFM-T15

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP15,.1,.14TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    25 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    ZIG-ZAG

E-TEA3718SP Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4965, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • The E-TEA3718SP has a low-power mode that can be enabled by setting the EN pin low. Additionally, the device can be configured for low-power mode by programming the registers according to the datasheet and application notes.
  • The E-TEA3718SP has an operating temperature range of -40°C to 125°C, but it's recommended to operate the device within the range of -20°C to 85°C for optimal performance and reliability.
  • To troubleshoot I2C interface issues, check the I2C bus voltage levels, clock frequency, and signal integrity. Ensure that the I2C bus is properly terminated, and the device is properly addressed. Use an oscilloscope or logic analyzer to debug the I2C communication.
  • STMicroelectronics recommends using a 10uF ceramic capacitor and a 1uF ceramic capacitor in parallel, placed close to the device's power pins, to ensure proper power supply decoupling and noise filtering.
