- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for E-UC2843BD1
- Part Number E-UC2843BD1
- Manufacturer STMicroelectronics
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - ST SO-8_7
- Released Date Jul 31, 2015
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
E-UC2843BD1 Details
-
Manufacturer Part Number:
E-UC2843BD1
-
Brand Name:
STMicroelectronics
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SO-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
-
Analog IC - Other Type:
SWITCHING CONTROLLER
E-UC2843BD1 Frequently Asked Questions (FAQs)
-
STMicroelectronics provides a recommended PCB layout in the application note AN4571, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
-
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 1-10uF. Additionally, consider the capacitor's ESR, ripple current, and temperature rating.
-
The maximum allowed voltage drop across the internal FETs is not explicitly stated in the datasheet. However, as a general rule, it's recommended to keep the voltage drop below 1V to ensure reliable operation and minimize power losses.
-
The E-UC2843BD1 is rated for operation up to 150°C, but it's essential to consider the device's power dissipation, thermal resistance, and cooling mechanisms to ensure reliable operation in high-temperature environments.
-
The E-UC2843BD1 has an internal overcurrent protection feature, but it's recommended to implement an external overcurrent protection circuit using a sense resistor and a comparator to detect overcurrent conditions and shut down the device if necessary.
Trust Checks
Community Provided
System Verified
Community Approved
E-UC2843BD1 Overview

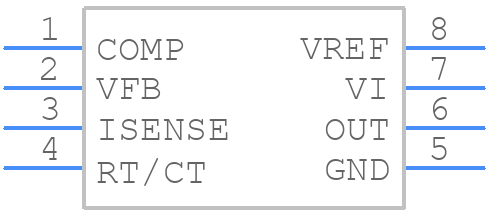

Use the download button to access the E-UC2843BD1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like E-UC2,
or try a keyword search, such as Switching Regulator or Controllers
