E101SD1V3QE - LITTELFUSE

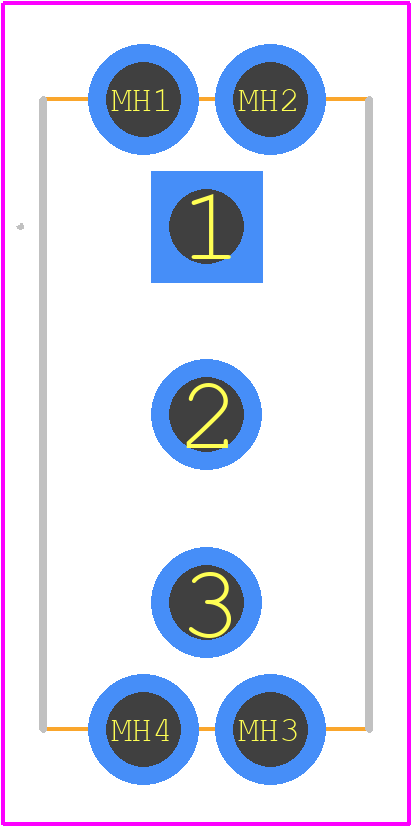

E101SD1V3QE Details

• Manufacturer Part Number:

  E101SD1V3QE

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.70.00

• Manufacturer:

  Littelfuse Inc

• YTEOL:

  7

• Actuator Angle:

  25 deg

• Actuator Finish:

  CHROME

• Actuator Length:

  0.3 inch

• Actuator Material:

  BRASS

• Body Height:

  11.68 mm

• Body Length or Diameter:

  15.75 mm

• Bushing Diameter:

  0.255 inch

• Bushing Length:

  0.25 inch

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  GOLD

• Contact (AC) Max Rating R Load:

  7.5A@125VAC

• Contact Current(AC)-Max:

  7.5 A

• Contact Current(DC)-Max:

  7.5 A

• Contact (DC) Max Rating R Load:

  7.5A@28VDC

• Contact Function:

  ON-ON

• Contact Resistance:

  0.1 mΩ

• Contact Voltage(AC)-Max:

  125 V

• Contact Voltage(DC)-Max:

  28 V

• Dielectric Withstand Volts:

  1000VAC V

• Electrical Life:

  40000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  GOLD

• Housing Material:

  GLASS FILLED POLYAMIDE66

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  GLASS FILLED POLYAMIDE66

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• PCB Hole Count:

  7

• Sealing:

  EPOXY TERMINAL SEALED

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPDT

• Switch Type:

  TOGGLE SWITCH

• Terminal Length:

  0.125 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER

• Washability:

  PRESSURE
