E301MD1AGE - LITTELFUSE

E301MD1AGE Details

• Manufacturer Part Number:

  E301MD1AGE

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Vietnam

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.40

• Manufacturer:

  Littelfuse Inc

• YTEOL:

  8

• Actuator Finish:

  CHROME

• Actuator Length:

  0.3 inch

• Actuator Material:

  BRASS

• Actuator Type:

  TOGGLE

• Body Breadth:

  16.3068 mm

• Body Height:

  21.971 mm

• Body Length or Diameter:

  12.7 mm

• Bushing Diameter:

  0.24 inch

• Bushing Length:

  0.25 inch

• Bushing Type:

  UNTHREADED

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  GOLD OVER NICKEL

• Contact (AC) Max Power Rating R Load:

  0.4VA@20VAC

• Contact (AC) Max Rating R Load:

  2A@250VAC

• Contact Current(AC)-Max:

  2 A

• Contact Current(DC)-Max:

  5 A

• Contact (DC) Max Rating R Load:

  5A@28VDC

• Contact Resistance:

  0.01 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  28 V

• Dielectric Withstand Volts:

  1000VRMS V

• Electrical Life:

  30000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  GOLD OVER NICKEL

• Housing Material:

  GLASS FILLED REINFORCED NYLON

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  GLASS FILLED NYLON

• JESD-609 Code:

  e4

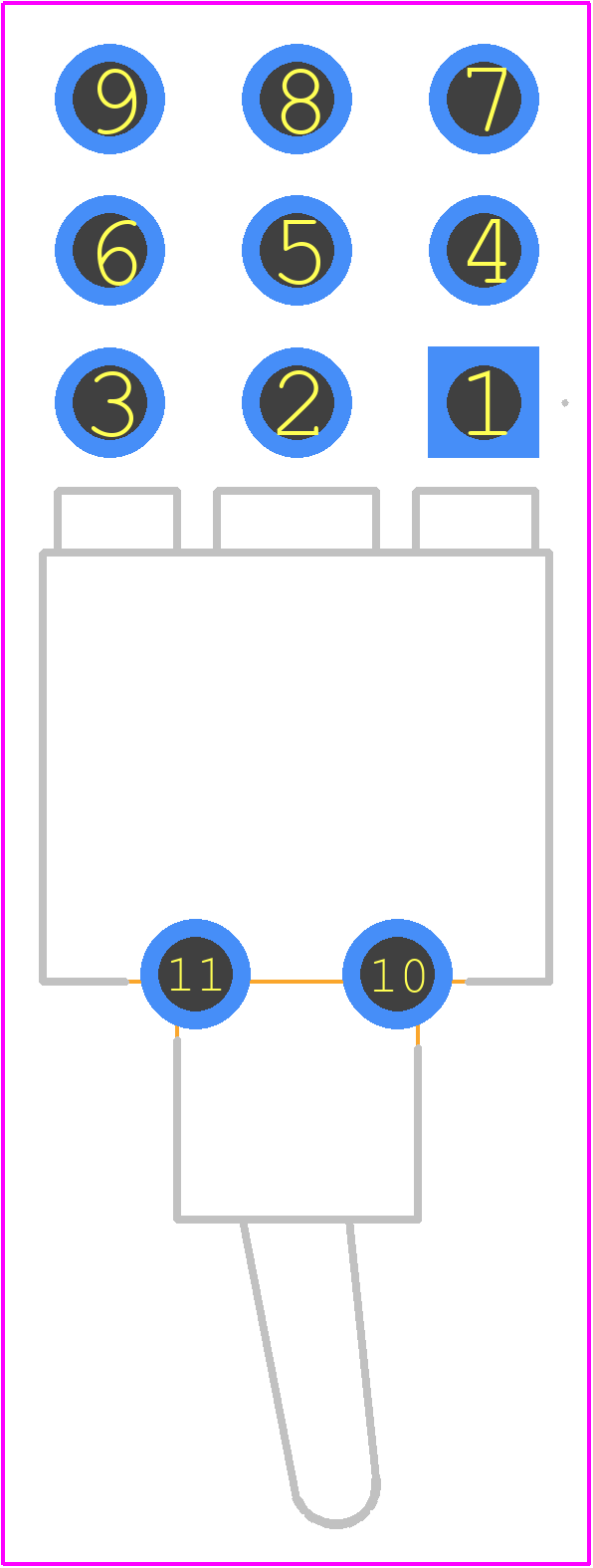

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• PCB Hole Count:

  8

• Sealing:

  EPOXY

• Solderability:

  MIL-STD

• Surface Mount:

  NO

• Switch Action:

  MOMENTARY

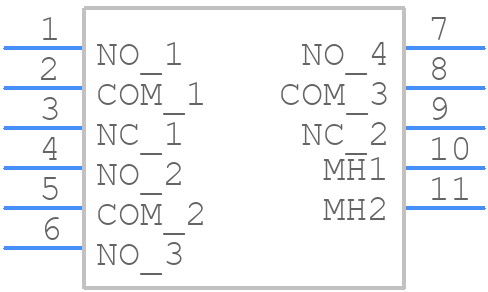

• Switch Function:

  3PDT

• Switch Type:

  TOGGLE SWITCH

• Terminal Finish:

  GOLD OVER NICKEL

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
