EA3059QDR - Ever Analog

Description: The EA3059 is a 4-CH power management IC for applications powered by one Li-Ion battery or a DC 5V adapter. It integrates four synchronous buck regulators and can provide high efficiency output at light load and heavy load operation. The internal compensation architecture simplifies the application circuit design. Besides, the independent enable control makes the designer have the greatest flexibility to optimize timing for power sequencing purposes. The EA3059 is available in a 24 pin QFN 4x4 package

Download EA3059QDR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this EA3059QDR model

Email notifications will be applied after download.

Send part feedback

Symbol

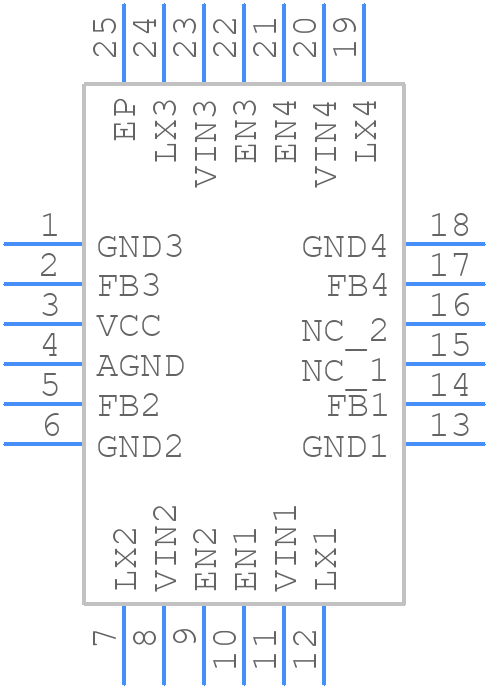

EA3059QDR - Ever Analog - PCB symbol

PCB Footprints

EA3059QDR - Ever Analog PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN 4mm x 4mm-24 Package

3D Models

EA3059QDR - Ever Analog - 3D model - Quad Flat No-Lead - QFN 4mm x 4mm-24 Package

Datasheet Download Datasheet
Stock & Prices Price & Stock for EA3059QDR
Part Number EA3059QDR
Manufacturer Ever Analog
Pin Count 25
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - QFN 4mm x 4mm-24 Package
Released Date Jun 4, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

EA3059QDR Details

Manufacturer Part Number:
EA3059QDR
Manufacturer:
Everanalog Integrated Circuit Limited
