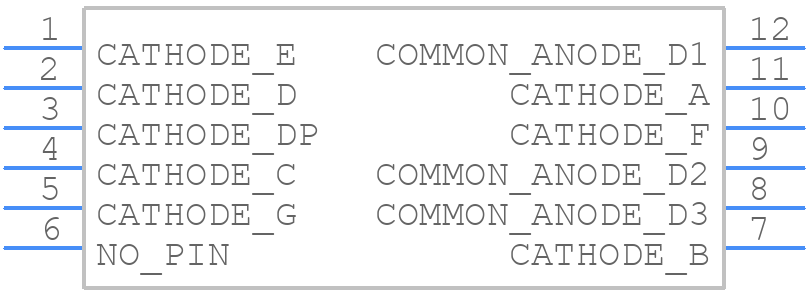

Symbol

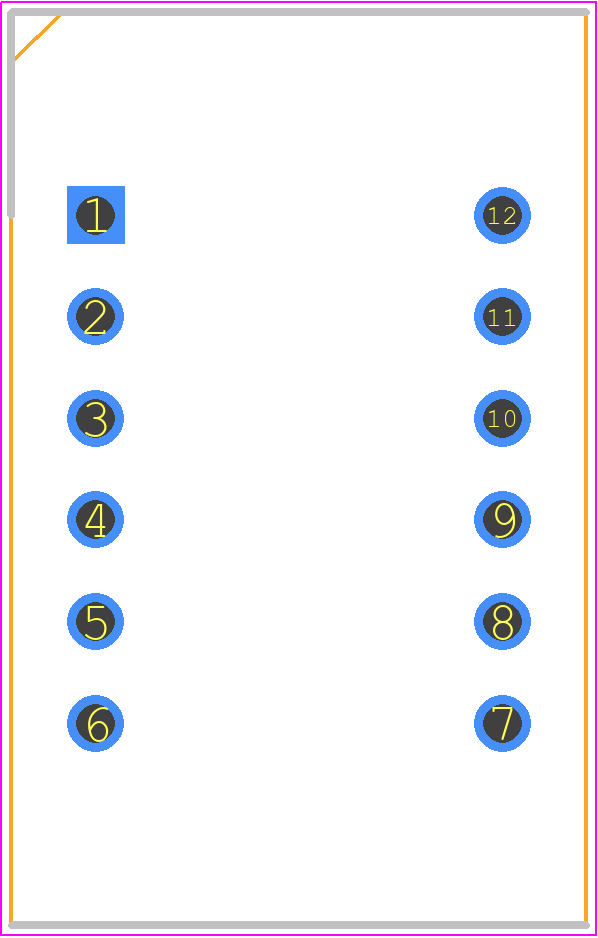

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for EADCT036GA2
- Part Number EADCT036GA2
- Manufacturer Everlight
- Pin Count 12
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - DIP12
- Released Date Jun 18, 2024
- Last Modified Date Jun 25, 2024 8:09 AM UTC
- Pinout / Pin List Click Here (Member Only)
EADCT036GA2 Details
-
Manufacturer Part Number:
EADCT036GA2
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8541.40.20.00
-
Factory Lead Time:
14 Weeks
-
Manufacturer:
Everlight Electronics Co Ltd
-
YTEOL:
6
-
Color:
BRILLIANT YELLOW GREEN
-
Configuration:
COMMON ANODE, 3 DIGITS WITH DECIMAL POINT
-
Display Height:
9.2 mm
EADCT036GA2 Frequently Asked Questions (FAQs)
-
The recommended storage temperature for EADCT036GA2 is -20°C to 40°C, with a relative humidity of 60% or less.
-
Yes, EADCT036GA2 is suitable for outdoor applications, but it's recommended to use a suitable enclosure or protective coating to protect the device from environmental factors such as moisture, dust, and UV radiation.
-
The maximum soldering temperature for EADCT036GA2 is 260°C for 10 seconds, with a peak temperature of 240°C.
-
Yes, EADCT036GA2 is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, and cadmium above the specified limits.
-
The typical operating life of EADCT036GA2 is 50,000 hours, but this can vary depending on factors such as operating temperature, current, and environmental conditions.
Trust Checks
Community Provided
System Verified
Community Approved
EADCT036GA2 Overview
Use the download button to access the EADCT036GA2 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like EADCT,
or try a keyword search, such as LED Displays
