EADSF056RA1 footprint, schematic symbol and 3D model by Everlight

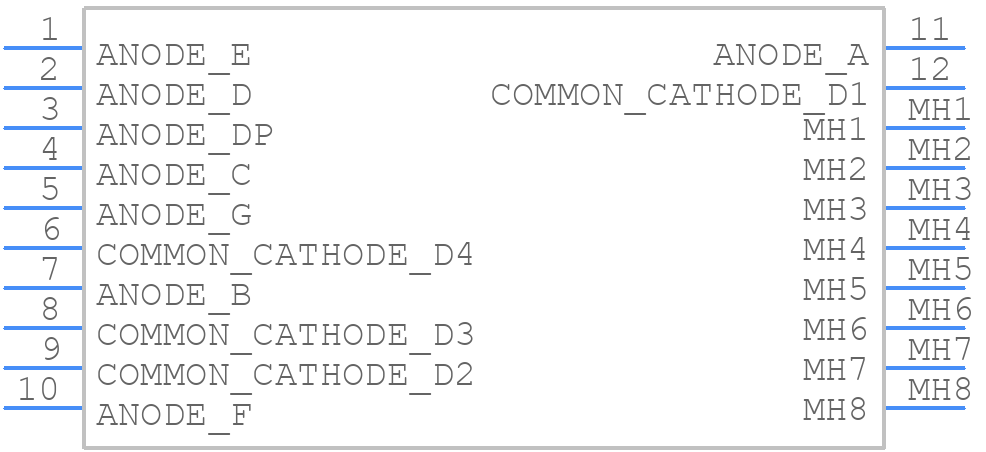

Symbol

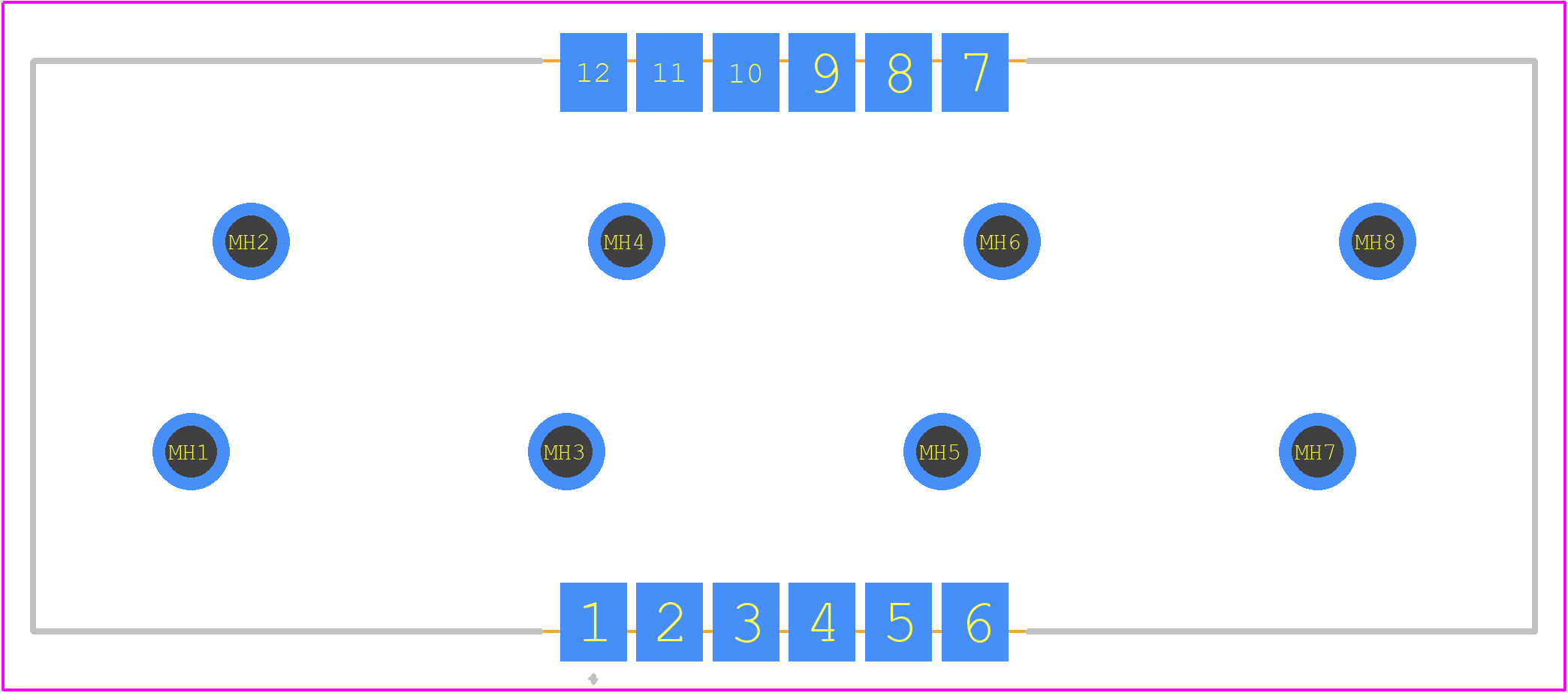

PCB Footprints

3D Models

EADSF056RA1 Details

The recommended storage temperature range for EADSF056RA1 is -40°C to 100°C, as per the manufacturer's guidelines.
While the EADSF056RA1 is not specifically designed for high-humidity environments, it can operate in environments with relative humidity up to 60%. However, it's recommended to take precautions to prevent moisture ingress and ensure proper sealing.
The maximum soldering temperature for the EADSF056RA1 is 260°C for a maximum of 10 seconds, as per the manufacturer's reflow soldering guidelines.
Yes, the EADSF056RA1 is compatible with lead-free soldering processes, and it's RoHS compliant.
The typical junction-to-ambient thermal resistance of the EADSF056RA1 is around 150°C/W, but this value can vary depending on the specific application and PCB design.

Community Provided

System Verified

Community Approved

Use the download button to access the EADSF056RA1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like EADSF, or try a keyword search, such as LED Displays
