- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for EADSS056RA1
- Part Number EADSS056RA1
- Manufacturer Everlight
- Pin Count 12
- Part Category Display
- Package Category Other

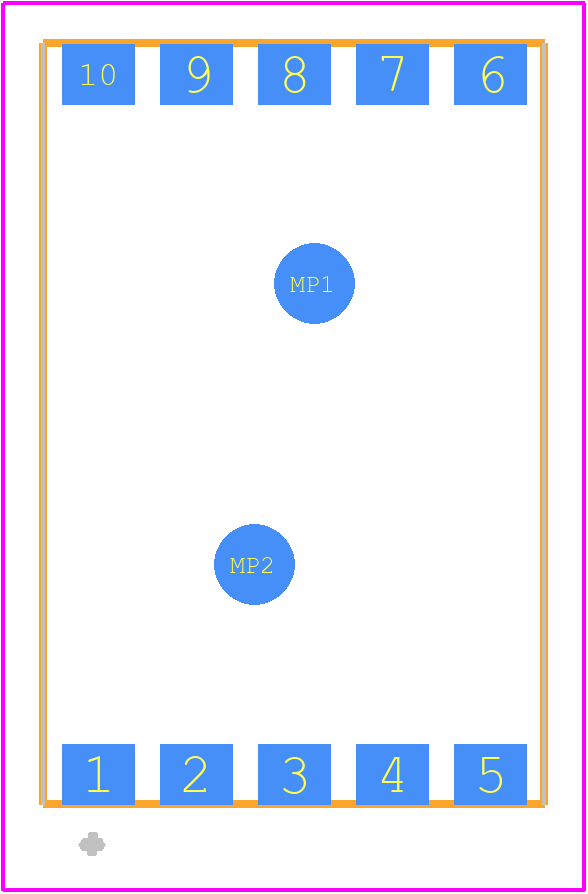

- Footprint Name Other - EADSS056RA1-1
- Released Date Jul 25, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
EADSS056RA1 Details
-
Manufacturer Part Number:
EADSS056RA1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8541.40.20.00
-
Manufacturer:
Everlight Electronics Co Ltd
-
YTEOL:
6
-
Color:
BRILLIANT RED
-
Configuration:
COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT
-
Display Height:
14.22 mm
-
Forward Current-Max:
0.025 A
Trust Checks
Expert Contribution
System Verified
Community Approved
EADSS056RA1 Overview

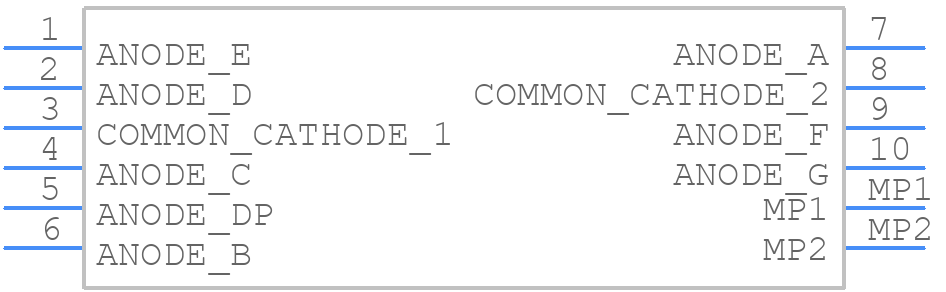

Use the download button to access the EADSS056RA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EADSS,
or try a keyword search, such as LED Displays
