Part Image

EADST040RA1 - Everlight

Description: Display Modules - LED Character and Numeric Red 7-Segment 3 Character Common Cathode 2V 20mA 0.591" H x 1.157" W x 0.124" D (15.00mm x 29.40mm x 3.15mm) 12-SMD, No Lead

Download EADST040RA1 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this EADST040RA1 model

Email notifications will be applied after download.

Send part feedback

Symbol

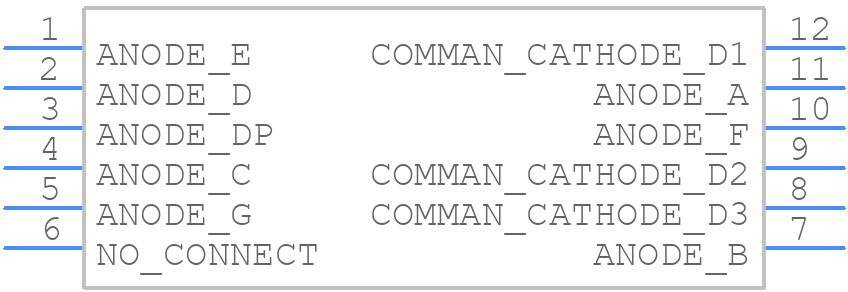

EADST040RA1 - Everlight - PCB symbol

PCB Footprints

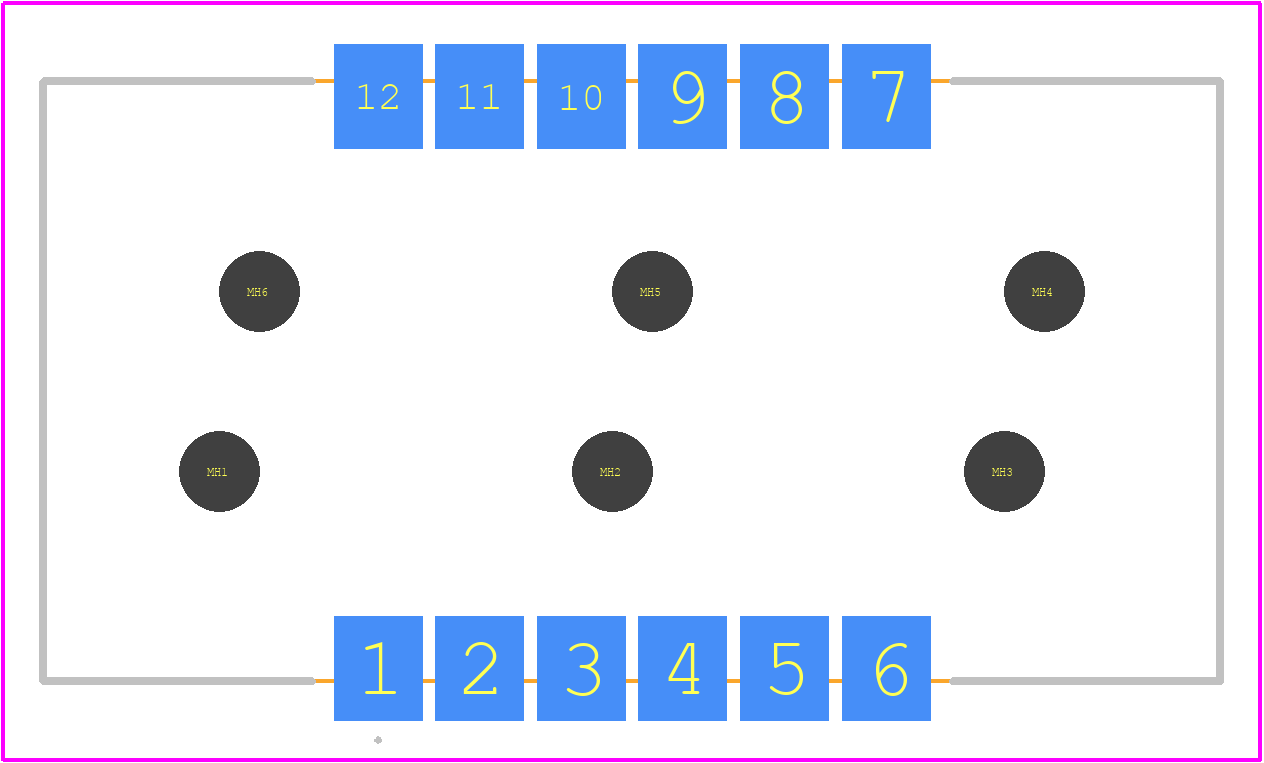

EADST040RA1 - Everlight PCB footprint - Other - Other - 12-SMD, No Lead

Datasheet Download Datasheet
Stock & Prices Price & Stock for EADST040RA1
Part Number EADST040RA1
Manufacturer Everlight
Pin Count 12
Part Category Display
Package Category Other
Footprint Name Other - 12-SMD, No Lead
Released Date Jul 29, 2023
Last Modified Date Jul 30, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

EADST040RA1 Details

Manufacturer Part Number:
EADST040RA1
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8541.40.20.00
Manufacturer:
Everlight Electronics Co Ltd
YTEOL:
6
Color:
BRILLIANT RED
Configuration:
COMMON CATHODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT
Display Height:
10 mm
Forward Current-Max:
0.025 A
Number of Functions:
3
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
7 SEG NUMERIC LED DISPLAY

EADST040RA1 Frequently Asked Questions (FAQs)

The recommended storage temperature range for EADST040RA1 is -40°C to 100°C.
Yes, EADST040RA1 is compatible with lead-free soldering, with a peak reflow temperature of 260°C.
The typical junction-to-ambient thermal resistance of EADST040RA1 is around 150°C/W.
Yes, EADST040RA1 is designed to operate in high-humidity environments, with a moisture sensitivity level of 3.
The recommended operating voltage range for EADST040RA1 is 1.8V to 5.5V.

Trust Checks

Community Provided

System Verified

Community Approved

EADST040RA1 Overview

Use the download button to access the EADST040RA1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like EADST, or try a keyword search, such as LED Displays
