EBC10DRXH - Sullins

Description: 20 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Blue

Download EBC10DRXH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

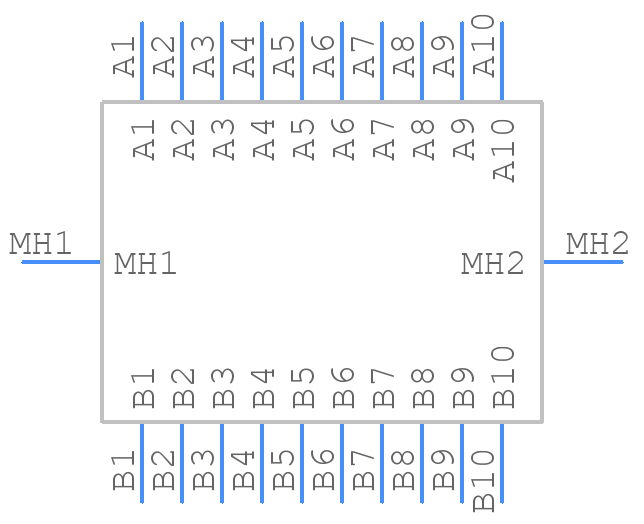

EBC10DRXH - Sullins - PCB symbol
click to zoom
PCB Footprints

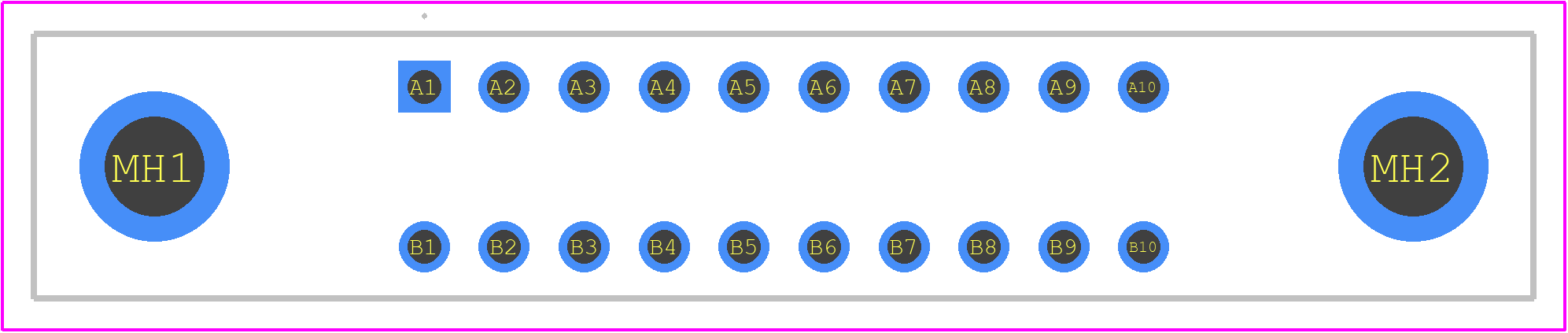

EBC10DRXH - Sullins PCB footprint - Other - Other - EBC10DRXH-2
click to zoom
3D Models
EBC10DRXH - Sullins - 3D model - Other - EBC10DRXH-2
click to zoom

EBC10DRXH Details

  • Manufacturer Part Number:

    EBC10DRXH

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    7

  • Board Mounting Option:

    HOLE .125 DIA.TYP

  • Body Breadth:

    0.33 inch

  • Body Depth:

    0.431 inch

  • Body Length:

    1.875 inch

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    MATTE TIN OVER NICKEL

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Filter Feature:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Plating Thickness:

    10u inch

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.185 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

EBC10DRXH Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the EBC10DRXH connector is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow the recommended torque to ensure proper mating and prevent damage to the connector.
  • Yes, the EBC10DRXH connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with vibrations up to 10G (10 Hz to 2000 Hz). However, it's recommended to consult with Sullins Connector Solutions or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
  • The EBC10DRXH connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the EBC10DRXH connector is compatible with lead-free soldering processes. It's designed to meet the requirements of RoHS (Restriction of Hazardous Substances) and is suitable for use in lead-free soldering applications.
  • The EBC10DRXH connector has a mating cycle life of 500 cycles minimum. This means it can withstand at least 500 mating and unmating cycles without compromising its performance or reliability.
