EBC18DRXH - Sullins

Description: CONN EDGE DUAL FMALE 36POS 0.100

Download EBC18DRXH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

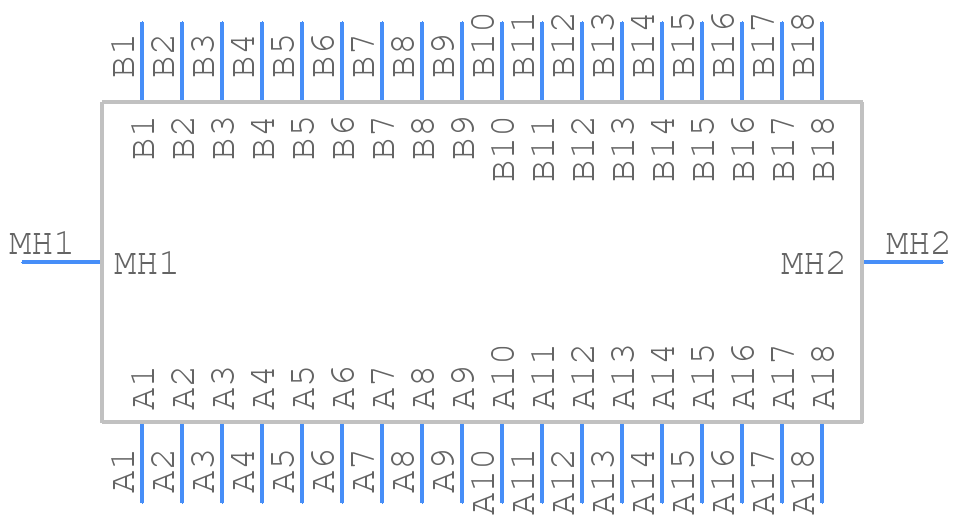

EBC18DRXH - Sullins - PCB symbol
click to zoom
PCB Footprints

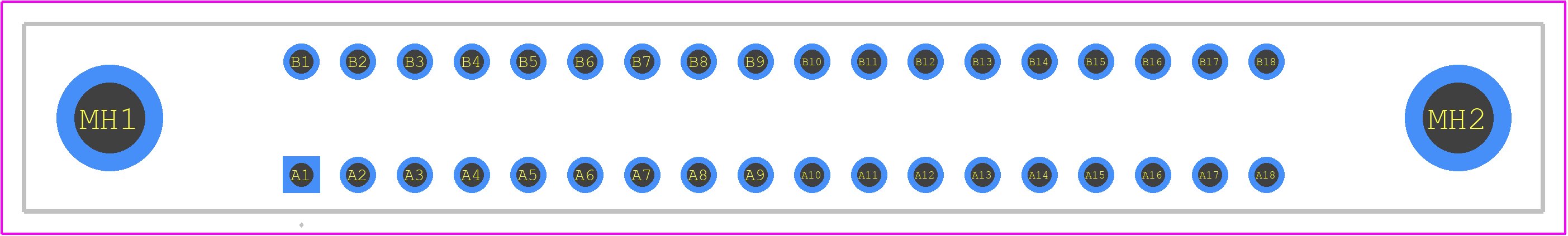

EBC18DRXH - Sullins PCB footprint - Other - Other - EBC18DRXH-1
click to zoom
3D Models
EBC18DRXH - Sullins - 3D model - Other - EBC18DRXH-1
click to zoom

EBC18DRXH Details

  • Manufacturer Part Number:

    EBC18DRXH

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    8

  • Board Mounting Option:

    HOLE .125 DIA.TYP

  • Body Breadth:

    0.33 inch

  • Body Depth:

    0.431 inch

  • Body Length:

    2.675 inch

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    MATTE TIN OVER NICKEL

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Filter Feature:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Plating Thickness:

    10u inch

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.185 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    36

EBC18DRXH Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the EBC18DRXH connector is 0.5-1.5 N·m (4-12 in-lbs). It's essential to follow the recommended torque to ensure proper connection and prevent damage to the connector.
  • Yes, the EBC18DRXH connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with vibration levels up to 10G (10 Hz to 2000 Hz). However, it's recommended to consult with Sullins Connector Solutions or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
  • The EBC18DRXH connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). However, it's essential to note that the connector's performance and reliability may be affected at extreme temperatures. Consult the datasheet or contact Sullins Connector Solutions for more information.
  • Yes, the EBC18DRXH connector is compatible with lead-free soldering processes. It's designed to meet the requirements of RoHS (Restriction of Hazardous Substances) and is suitable for use in lead-free soldering applications.
  • The recommended mating cycle for the EBC18DRXH connector is 500-1000 cycles. However, the actual mating cycle may vary depending on the application, environment, and usage. Consult the datasheet or contact Sullins Connector Solutions for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EBC18DRXH Overview

Use the download button to access the EBC18DRXH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EBC18, or try a keyword search, such as Headers and Edge Type Connectors
