EBC30DRXH - Sullins

Description: CONN EDGE DUAL FMALE 60POS 0.100

Download EBC30DRXH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EBC30DRXH - Sullins - PCB symbol
click to zoom

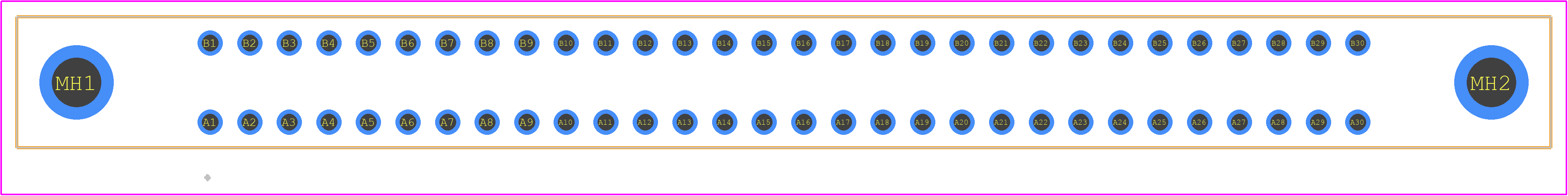

PCB Footprints
EBC30DRXH - Sullins PCB footprint - Other - Other - EBC30DRXH-3
click to zoom
3D Models
EBC30DRXH - Sullins - 3D model - Other - EBC30DRXH-3
click to zoom

EBC30DRXH Details

  • Manufacturer Part Number:

    EBC30DRXH

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    8

  • Board Mounting Option:

    HOLE .125 DIA.TYP

  • Body Breadth:

    0.33 inch

  • Body Depth:

    0.431 inch

  • Body Length:

    3.875 inch

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    MATTE TIN OVER NICKEL

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Filter Feature:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Plating Thickness:

    10u inch

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.185 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    60

EBC30DRXH Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the EBC30DRXH connector is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow the recommended torque to ensure proper mating and prevent damage to the connector.
  • Yes, the EBC30DRXH connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with vibrations up to 10G (10 Hz to 2000 Hz). However, it's recommended to consult with Sullins Connector Solutions for specific vibration testing and validation.
  • The EBC30DRXH connector has an operating temperature range of -40°C to +125°C (-40°F to +257°F). However, it's essential to note that the temperature range may vary depending on the specific application and environmental conditions.
  • Yes, the EBC30DRXH connector is compatible with lead-free soldering processes. It's designed to meet the requirements of RoHS (Restriction of Hazardous Substances) and is suitable for use in lead-free soldering applications.
  • The recommended mating cycle for the EBC30DRXH connector is 500-1000 cycles. However, the actual mating cycle may vary depending on the specific application, environmental conditions, and usage patterns.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EBC30DRXH Overview

Use the download button to access the EBC30DRXH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EBC30, or try a keyword search, such as Headers and Edge Type Connectors
