EBM10DRXH - Sullins

Description: 20 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Blue

Download EBM10DRXH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EBM10DRXH - Sullins - PCB symbol
click to zoom
PCB Footprints

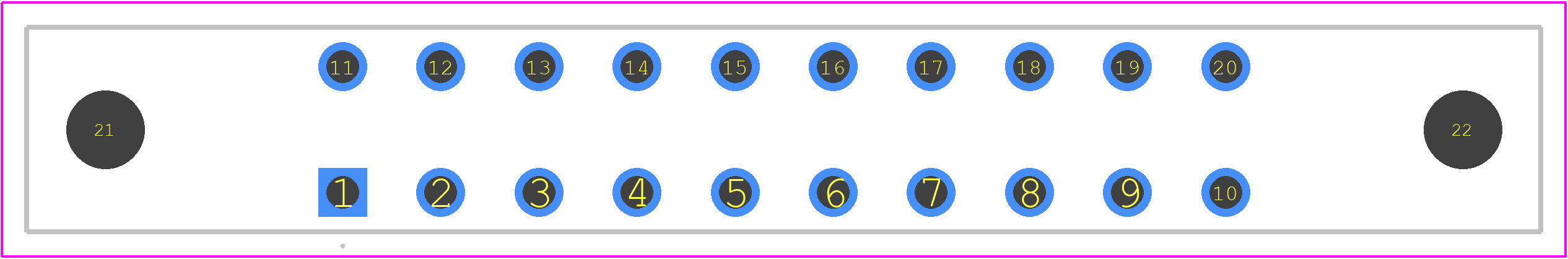

EBM10DRXH - Sullins PCB footprint - Other - Other - EBM10DRXH-2
click to zoom
3D Models
EBM10DRXH - Sullins - 3D model - Other - EBM10DRXH-2
click to zoom

EBM10DRXH Details

  • Manufacturer Part Number:

    EBM10DRXH

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    8

  • Board Mounting Option:

    HOLE 0.125

  • Body Breadth:

    0.325 inch

  • Body Depth:

    0.431 inch

  • Body Length:

    2.406 inch

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Durability:

    500 Cycles

  • Filter Feature:

    NO

  • Insertion Force-Max:

    4.448 N

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLUE

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mating Contact Pitch:

    0.156 inch

  • Mating Contact Row Spacing:

    0.075 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    HOLE 0.125

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -65 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    5.08 mm

  • Plating Thickness:

    10u inch

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.137 inch

  • Terminal Pitch:

    3.96 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    0.278 N

EBM10DRXH Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks on the EBM10DRXH connector is 0.5-1.5 N·m (0.36-1.07 lbf·in). It's essential to follow the recommended torque to ensure proper mating and prevent damage to the connector.
  • Yes, the EBM10DRXH connector is designed to withstand high-vibration environments. It has a ruggedized design and screw-lock mechanism that ensures secure connections even in harsh conditions. However, it's recommended to consult with Sullins Connector Solutions or a qualified engineer to determine the suitability of the connector for your specific application.
  • The operating temperature range of the EBM10DRXH connector is -40°C to 105°C (-40°F to 221°F). It's essential to ensure that the connector operates within this temperature range to maintain its performance and reliability.
  • Yes, the EBM10DRXH connector is compatible with lead-free soldering processes. It's designed to meet the requirements of RoHS (Restriction of Hazardous Substances) and is suitable for use in lead-free soldering applications.
  • The recommended mating cycle for the EBM10DRXH connector is 500-1000 cycles. However, the actual mating cycle may vary depending on the application, environment, and usage. It's recommended to consult with Sullins Connector Solutions or a qualified engineer to determine the suitable mating cycle for your specific application.
