EBM15DRAH - Sullins

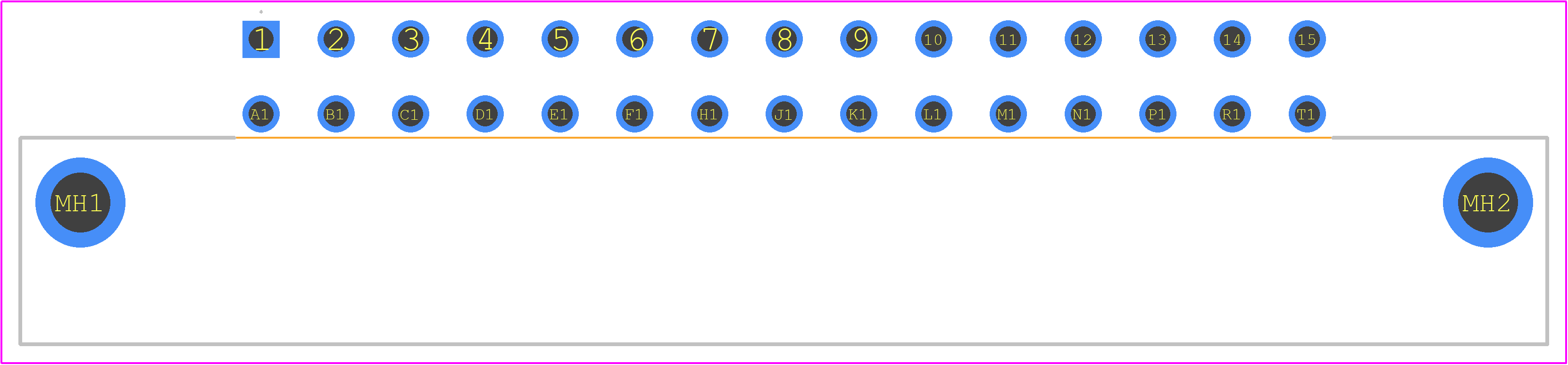

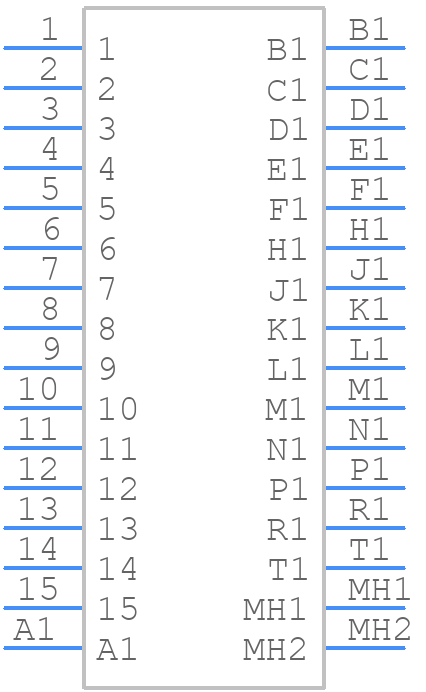

EBM15DRAH Details

• Manufacturer Part Number:

  EBM15DRAH

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Sullins Connector Solutions

• YTEOL:

  8

• Body Breadth:

  0.325 inch

• Body Depth:

  0.431 inch

• Body Length:

  3.186 inch

• Connector Type:

  CARD EDGE CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  MATTE TIN OVER NICKEL

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  30 mΩ

• Contact Style:

  BELLOWED TYPE

• Durability:

  500 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  4.448 N

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLUE

• Insulator Material:

  POLYBUTYLENE TEREPHTHALATE

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.156 inch

• Mating Contact Row Spacing:

  0.03 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -65 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  3.96 mm

• Plating Thickness:

  10u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  3 A

• Reference Standard:

  UL

• Terminal Length:

  0.125 inch

• Terminal Pitch:

  3.96 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  30

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  0.278 N
